Signal and Data Cable Assemblies

Data and signal leads for machine vision, robotics and industrial serial links, including locking USB3 Vision camera cords, USB4 active optical assemblies and torsion-resistant robot cabling. Shielding, jacket and connector orientation are set per order.

Interface
USB-C · USB4 · USB3 Vision
Protocol
RS-485 · CAN · 10GBASE-T
Shielding
Foil + braid · copper/fiber hybrid
Jacket
PVC · PUR · TPE
Motion
Static · continuous flex · torsion
Sealing
IP65 – IP68 on request
Length
0.3 m – 30 m
Build
Overmolded · cleanroom-rated

Showing 49–59 of 59 results

Show sidebar
Show 12 18 24
coiled-power-cord-sjow
coiled-power-cord-sjow connector detail

SJOW Coiled Power Cord 18-3 / 16-3

This coiled sjow cord is a 300 V junior hard-service cord with an oil-resistant jacket, three conductors at 18 AWG or 16 AWG, wound into a 1:4 to 1:5 retractable coil. Molded plug and connector ends, or flying leads, built to your lengths for workshop and light industrial drops.

sma-to-bnc-rf-coax-patch-cable

SMA to BNC RF Coax Patch Cable, 50 Ohm RG-58

An sma to bnc coax cable on 50 ohm RG-58, built to the length your bench needs with crimp or solder terminations. One cable instead of a stack of adapters.

UL1331 FEP wire rated 600 V and 150 °C

UL1331 FEP Teflon Hook-Up Wire, 600 V / 150 °C

A UL1331 FEP wire is a single-conductor hook-up wire insulated with extruded FEP (fluorinated ethylene propylene) and rated 600 V and 150 °C to UL758. HKWIRE supplies it in tinned copper from AWG 30 to 4/0, with a uniform 0.50 mm insulation wall on the common sizes so it strips and cuts cleanly, in nine stock colors including transparent.
usb-c-active-optical-cable

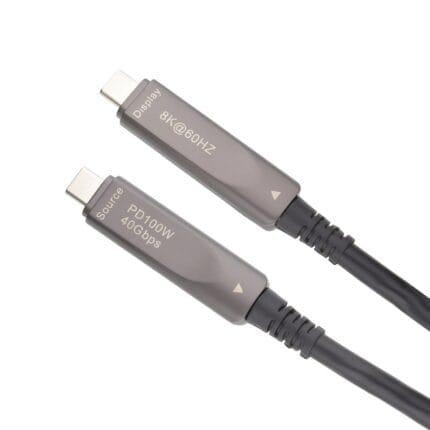

USB-C Active Optical Cable for Long-Reach USB4 Class Links

A USB-C active optical cable that converts the electrical signal to light at one end and back at the other, removing the reach limit on passive copper. 5 m, 10 m and 15 m, ends marked for direction. Confirm DisplayPort Alt Mode support per build before ordering.

USB-C-Gen2-Data-Cable-10-Gbps-with-100W-PD

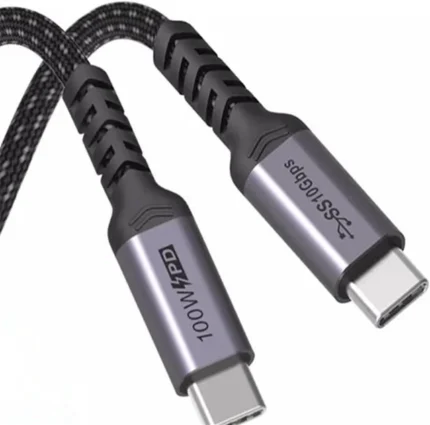

USB-C Gen2 Data Cable, 10 Gbps, with 100 W Power Delivery

A USB-C Gen2 data cable with every position wired rather than a charge-only lead. 10 Gbps data, 100 W power delivery with an E-Marker, DisplayPort alternate mode support, and lengths from 0.3 m to 2 m with a right-angle option.
USB-C-PD-Charging-Cable-240-W-PD

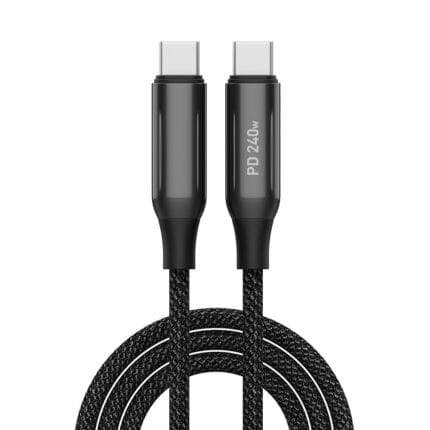

USB-C PD Charging Cable 240 W PD 3.1 EPR, Braided, 1 / 2 / 3 m

A usb-c pd charging cable built for the 240 W PD 3.1 extended power range: the marker chip in the plug reports the cable rating so the charger will offer the 48 V profile. Braided nylon jacket, 480 Mbps sync, 1 m, 2 m and 3 m.
usb3-vision-camera-cable

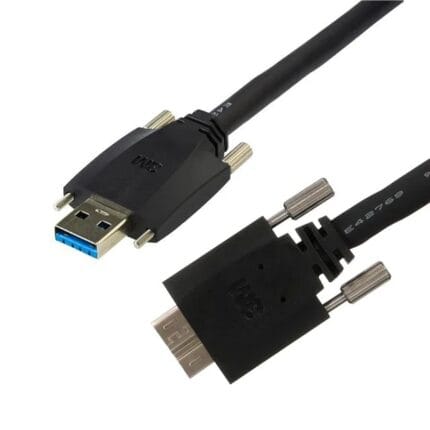

USB3 Vision Camera Cable with Locking Screws for Machine Vision

A USB3 vision camera cable with captive thumb screws at the host end and the camera end, so the connection stays seated next to a conveyor or an indexing table. Double shielded high-speed pairs, 0.5 m to 10 m, with a drag-chain grade option.

usb4-80gbps-cable

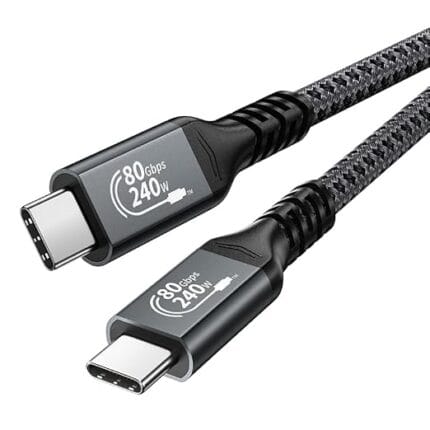

USB4 80Gbps Cable for Docks, 8K Displays and eGPU Enclosures

A USB4 80Gbps cable built for docks, 8K displays and external GPU enclosures, where the lead is part of the link budget rather than an accessory. E-Marker identified to the host, triple shielded, and offered in the shortest length that reaches.

verifone-vx680-rj45-coil-cable
verifone-vx680-rj45-coil-cable connector detail

Verifone Vx680 14-Pin to RJ45 Coiled Ethernet Cable

This verifone vx680 coil cable links the 14-pin docking header on the Vx680 base to a standard RJ45 Ethernet drop, in Cat5e SF/UTP with a retractable PUR coil at 1:5 stretch. Built to your relaxed and extended length for counter and cart-mounted payment terminals.

waterproof USB-C bulkhead cable with panel mount connector and dust cap

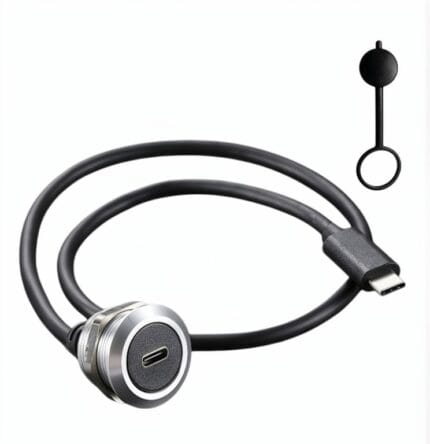

Waterproof USB-C Bulkhead Cable for Panel Mount Enclosures

A waterproof USB-C bulkhead cable for a port the public can reach and the weather cannot. A sealed shell mounts through the panel, a sealed lead runs to the board inside, and a dust cap covers the unmated state. Give us the cut-out and the internal length.
zebra-scanner-USB-cable
zebra-scanner-PS2-cable

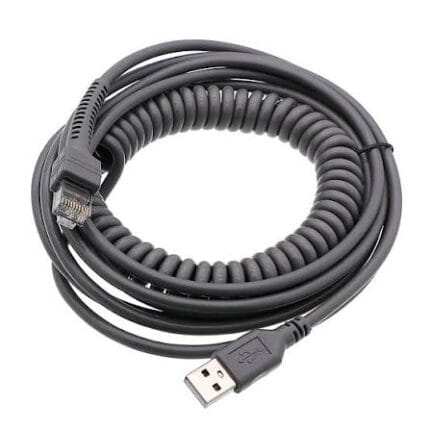

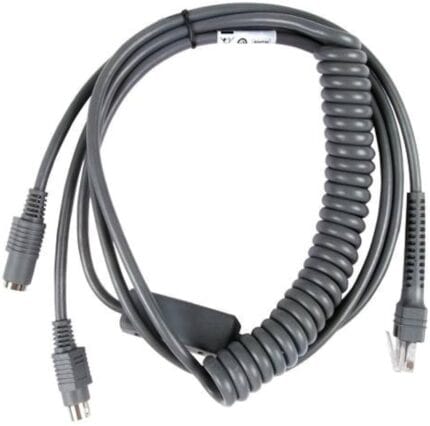

Zebra / Symbol Scanner Cable, USB, RS-232 or PS/2

A Zebra Symbol scanner cable built to your model and host interface: USB, RS-232 or PS/2, at the length and jacket your fleet runs.

Specification table

This category exists because most projects start from a host port rather than a cable: the connector is decided by the equipment, and the build has to meet the signal requirement around it. Tell us the interface, the reach and what the cable moves through, and we specify conductor, shields and pitch from there.

Typical signal and data cable build options. Every assembly is made to order, so values outside this table are quoted rather than declined.
ParameterStandard buildAvailable on request
InterfaceUSB-C, USB4, USB3 Vision, Micro-B, RJ45Mixed ends, panel-mount versions, legacy DIN
ProtocolRS-485 / RS-422 Modbus RTU, CAN10GBASE-T, Camera Link HS style builds
Data rate480 Mbit to 20 Gbit depending on the interfaceFull-rate verification on request
Conductor22-28 AWG stranded copperSilver-plated copper, fine-strand high-flex classes
ShieldingFoil plus braid over the signal pairsIndividual pair shields plus overall screen
Flex classStatic routingContinuous flex, torsion, cleanroom-rated constructions
JacketPVC (indoor), PUR (oil and coolant)TPE, halogen-free, low-outgas cleanroom grades
SealingIP65 to IP68 mated with the right hardwareIP69K where the run is washed down
Length0.3 m to 30 mLonger runs quoted against the interface loss budget
BuildOvermolded strain relief on both endsBackshells, potting, labeled harness branches

USB builds follow the USB4 and USB specification set published by the USB Implementers Forum; vision interfaces are specified against the AIA vision standards and, for camera-side behavior, EMVA guidance.

Typical applications

  1. Machine vision USB3 Vision and GigE Vision leads that hold lock even when the cable flexes with a moving camera.
  2. Motion control Encoder and feedback lines kept separate from motor power to avoid encoder noise.
  3. Fieldbus runs RS-485 and CAN trunks built to the characteristic impedance the network expects.
  4. Drag chain Continuous-flex constructions with specified bend radius and cycle life.
  5. Semiconductor and cleanroom Low-outgas jackets and documented packing.
  6. Test and measurement Short-run precision leads with stated capacitance and return loss.

Related reading

Questions buyers ask

How do I choose between foil and braid shielding?

Foil gives 100 percent coverage and handles high frequency noise; braid is stronger mechanically and carries low frequency return current better. Most motion and vision builds use both. There is a case where a shield makes EMC worse, and we cover it in shielded vs unshielded cable.

What decides the usable length of a GigE Vision run?

Insertion loss across the pairs, followed by the return loss of the plug terminations. Screw-lock and high-flex constructions change the answer, so we work from the camera and switch distances rather than a fixed maximum. See GigE Vision cable selection.

Can you hold a torsion rating?

Yes for robot-mounted builds. We need the twist angle per meter and the cycle count, then select the stranding and shield construction to match instead of quoting a generic flex number.

Have one built to your drawing

Send the connector part numbers, lengths and environment. We review manufacturability in writing before any tooling spend, and we tell you up front what we cannot do.
