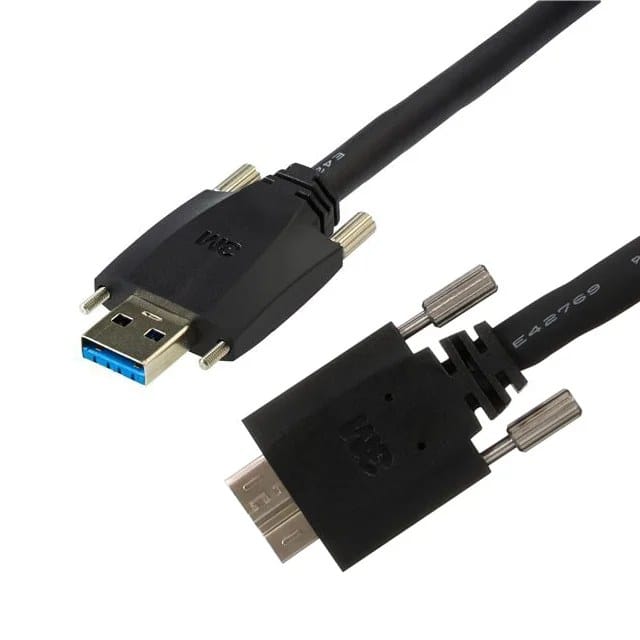

USB3 Vision Camera Cable with Locking Screws for Machine Vision

Last updated: 7 September 2026

This USB3 vision camera cable comes with locking screws for machine vision.

Machine vision cameras sit next to conveyors, indexing tables and robot cells. A standard USB connector held in only by friction will walk out over time, and the symptom is intermittent: frames drop, the camera re-enumerates, and the fault gets blamed on the software. This range uses captive thumb screws on both the host side and the camera side so the connection stays seated.

Construction

• Host end: USB-A or USB-C, with captive thumb screws.
• Camera end: locking screw shell, USB 3.2 type B or USB-C depending on the camera.
• Outside diameter: 6.2 mm.
• Shielding: double layer, foil plus braid over the high-speed pairs.
• Length: 0.5 m to 10 m.

Reach Versus Data Rate

The published figures for this class are 5 Gbps out to 7 m and 10 Gbps out to 5 m. Both are design targets here, pending bit error and eye diagram testing on finished assemblies, because passive copper reach is the most over-stated number in this category. Length, host controller and camera silicon all move the practical limit, so the honest answer for a given installation is a tested length rather than a printed one.

A drag-chain grade version is offered where the camera moves or the cable runs on a gantry. That changes the jacket compound and the strain relief design rather than the connector, so it has to be specified at enquiry stage and cannot be added later.

Selecting A Length

Measure the installed route rather than the straight-line distance, add service slack at the camera end only, and do not coil the excess. A coil of high-speed cable sitting next to a drive cabinet is a reliable way to lose frames, and it is the first thing we check when a customer reports dropped images. If a run genuinely needs more than 10 m, an active or optical assembly is the correct answer rather than a longer passive lead, because the passive copper limit does not move with a better jacket.
