KUKA Robot Power Cable MOT X20

Overview

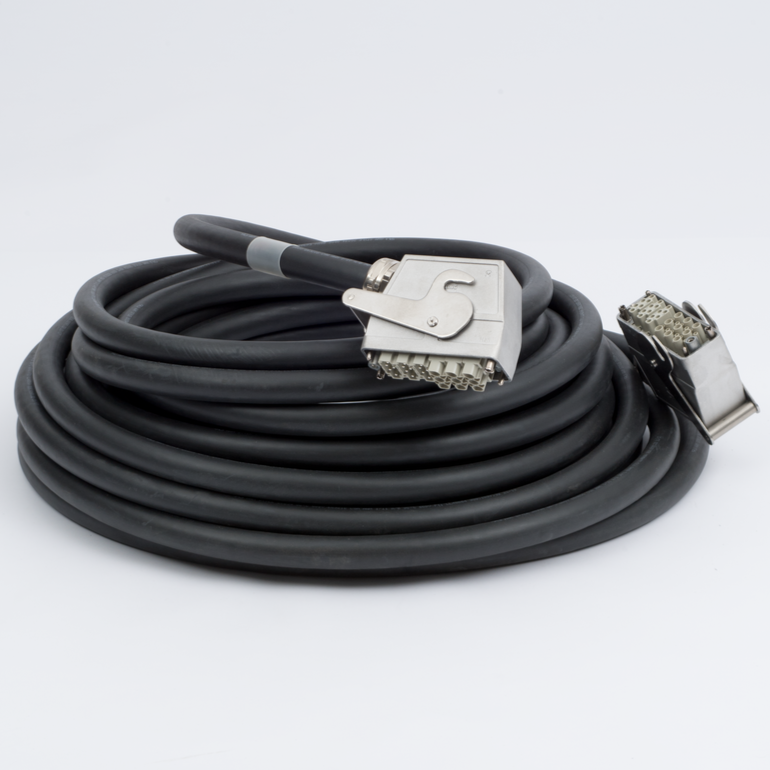

Robot power cable wired to the KUKA MOT X20 motor power pinout. The cable carries the drive power from the KUKA controller to the servo motor, using a high-flex PUR jacket that handles the small bend radius inside the robot dress pack and the cable track.

Key Specifications

Connector A	KUKA motor side, size 1 or size 2 power shell, locking
Connector B	Controller side, KUKA drive receptacle or open lead
Conductor	4 x 14 AWG or 4 x 12 AWG stranded bare copper
Shielding	Overall foil + braid, drain wire
Jacket	PUR, black, drag-chain rated, oil-resistant
Bend Radius	10 x OD static, 7.5 x OD dynamic
Length	5 m to 50 m standard; OEM on request

Construction and Materials

Four high-current conductors in 14 AWG or 12 AWG stranded bare copper, wrapped in an overall foil + braid shield with drain wire. A filler keeps the bundle round and the PUR jacket is a halogen-free, oil-resistant compound rated for drag-chain use. The motor side connector uses a KUKA-compatible power shell with a locking ring; the controller side is a KUKA drive receptacle or open lead.

Typical Applications

KUKA motor power cable replacement on KR and VK series robots
Drop-in lead for the MOT X20 power cable set
Servo motor power in industrial robot dress packs
High-flex production cells with cable tracks

Compatibility and Fitment

Compatible with KUKA motor power receptacles wired to the MOT X20 pin layout. Cross-reference OEM MOT X20; the cable is a compatible replacement and is not an OEM KUKA product.

Custom Builds and Ordering

Conductor size, length, jacket colour, connector back-shell and label print are configurable. Sample 10 to 15 working days, production 20 to 30 working days.

Packaging and Shipping

Each cable coiled and tied, PE bag plus individual brown box. Reel packaging available on request.

Quality and Compliance

Jacket tested to IEC 60332-1-2 flame propagation. Drag-chain rating tested to 5 million cycles minimum. RoHS 2.0 and REACH compliance on file. Machine-side wiring follows <a href=”https://www.iec.ch” rel=”nofollow noopener” target=”_blank”>IEC 60204-1</a> for electrical equipment of machines, and robot cell integration follows <a href=”https://www.iso.org/standard/73904.html” rel=”nofollow noopener” target=”_blank”>ISO 10218</a> where cited by the integrator.
