FANUC Robot Encoder Cable A660 Series Compatible

Overview

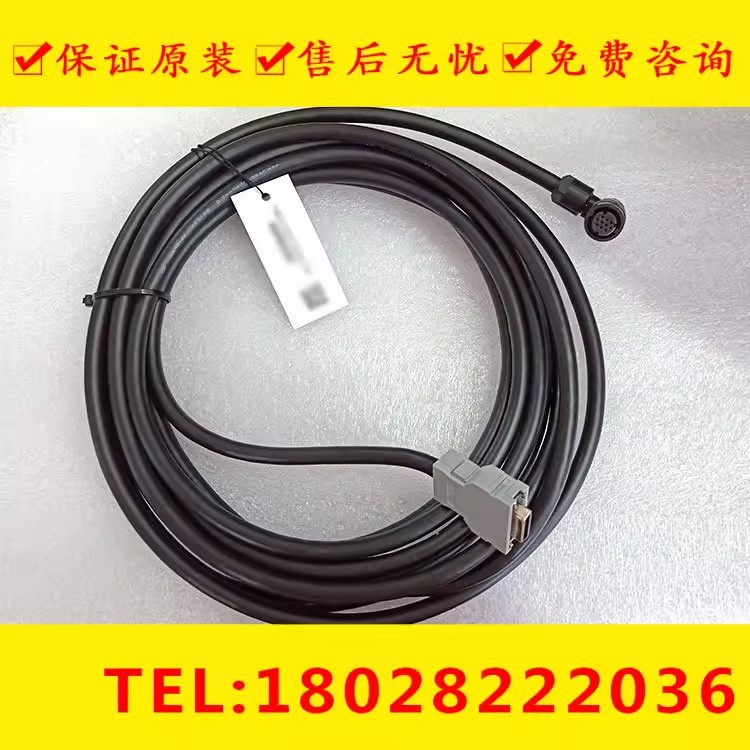

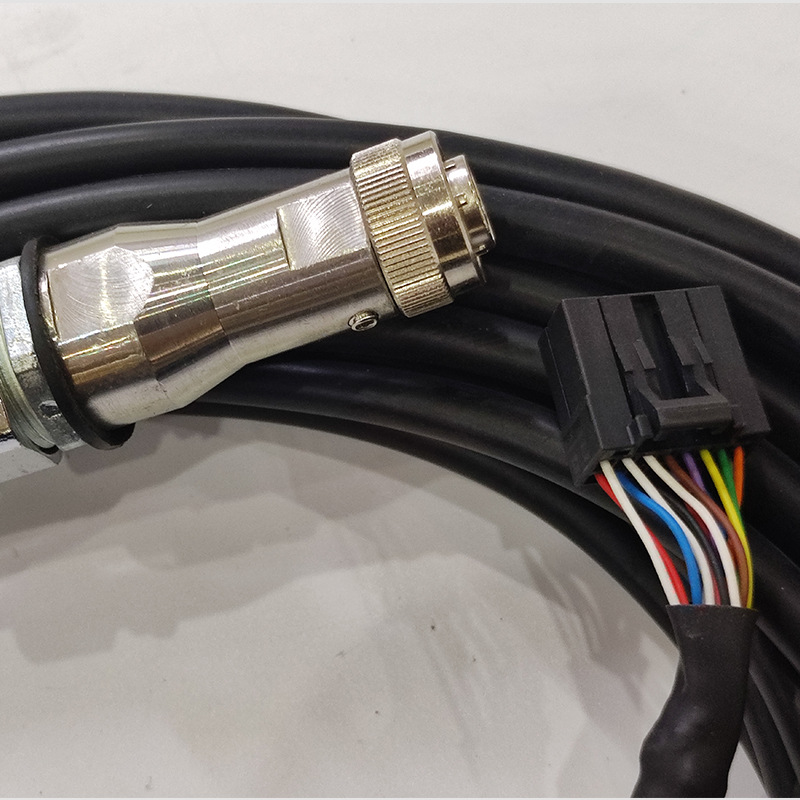

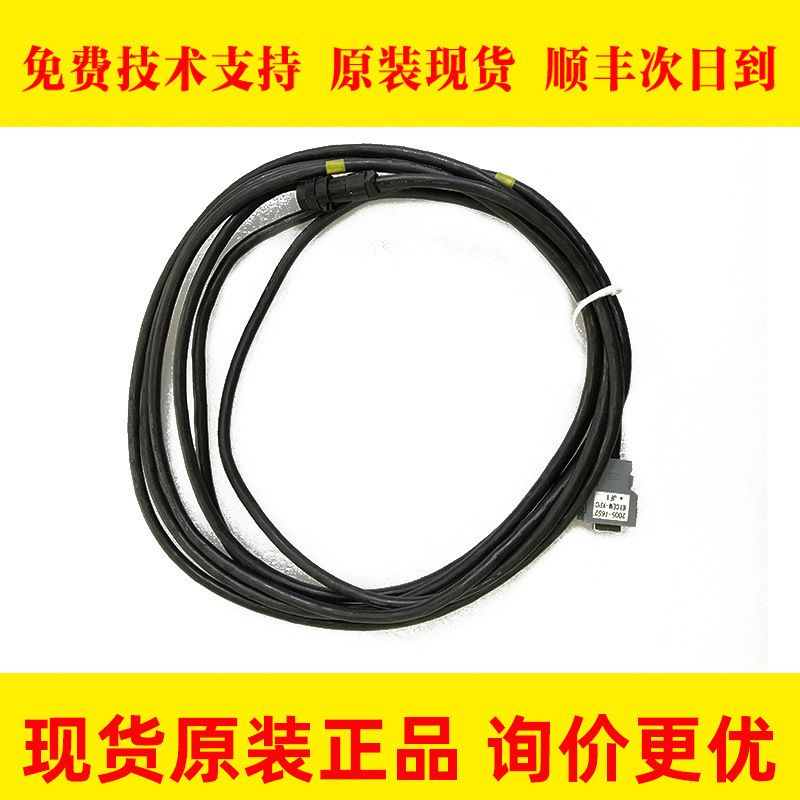

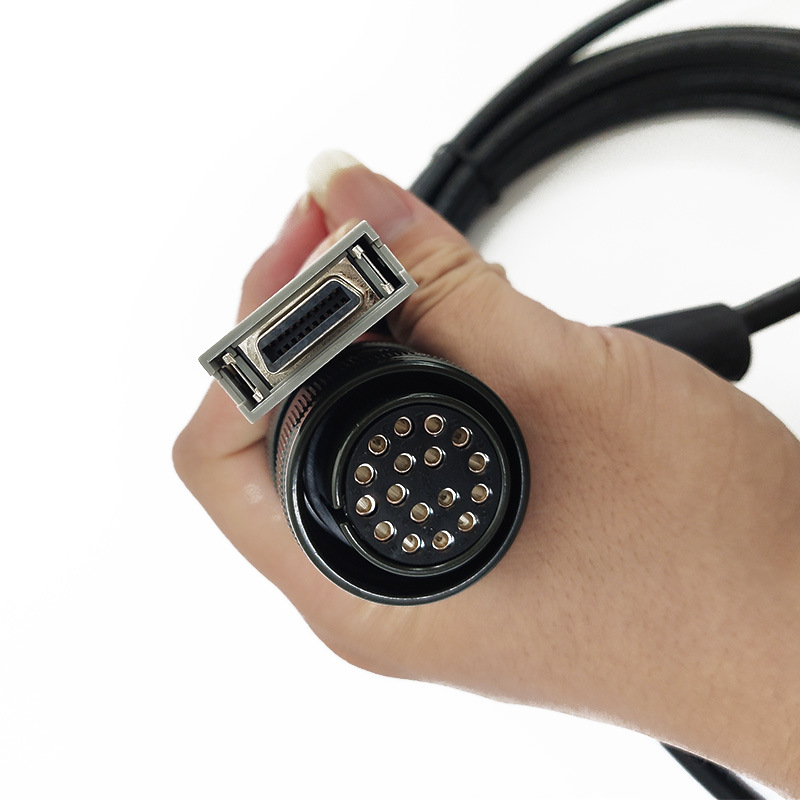

A fanuc encoder a660 cable carries the pulse coder feedback from a FANUC servo motor back to the axis card in the controller. Ours is wired to the A660-series pin layout, covering A660-2005-T505, T506, T652 and T859 as well as the related A06B and A13B feedback families. Six or ten 24 AWG stranded tinned copper conductors sit under an overall foil plus braid shield with a drain wire, inside a halogen-free PUR jacket rated for drag-chain use. It is a compatible replacement built to your drawing and pinout, not an OEM FANUC part.

Key Specifications

What this fanuc encoder a660 cable has to survive

Encoder feedback is a low-level differential signal riding on a cable that lives inside a cable carrier next to motor power. Two things kill it. The first is mechanical: a jacket that is not rated for continuous flex will crack at the carrier bend long before the copper goes, and once the jacket goes the coolant gets in and the shield corrodes. The second is electrical: if the shield is pigtailed instead of bonded all around at both ends, the return current finds its way onto the data pair and the axis starts throwing position errors that look like a bad encoder. We build with foil plus braid and a drain wire, keep the pair twist right up to the termination, and bond the screen at the connector rather than leaving a tail.

Which A660 variants does the cross-reference cover?

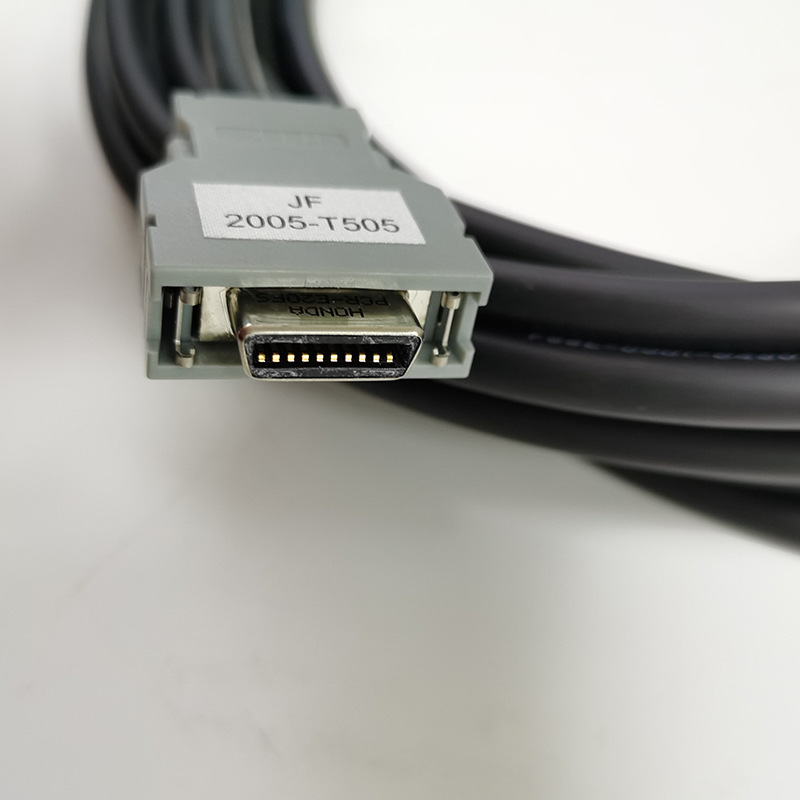

A660-2005-T505, T506, T652 and T859 are the encoder-side leads most shops ask for by number, and the same pin layout turns up across the related A06B and A13B feedback cable families on alpha and beta pulse coders. What actually decides the build is not the printed number alone, it is three things: the shell size at the motor, whether the pulse coder is absolute or incremental, and which axis card the far end lands on. Give us those three and the length, and the connector family follows. If you only have the number off the old cable jacket, send it – it is usually enough to identify the shell.

Specifying length on a moving axis

Length on a robot lead is not a straight-line measurement. The cable has to cover the full stroke of the axis plus the bend radius at each end of the carrier plus a margin, and if you under-measure the cable goes taut at the extremes and pulls on the connector – which is how a good encoder gets destroyed. Send the stroke and the carrier layout if you have it. Standard range is 5 m to 30 m, and we can build longer on a reel for a long-reach cell.

What to tell us about the cable carrier

Drag-chain rated is a starting point, not a specification. What actually decides whether a lead survives is the stroke length, the cycle rate and the bend radius the carrier holds the cable to, and the first two of those you already know. A short stroke at a high cycle rate is harder on a cable than a long stroke at a low one, because the damage accumulates in the same few centimeters of jacket every time. Tell us the stroke, roughly how many cycles a day, and whether the carrier runs through coolant mist, and we will pick the stranding and the jacket against that rather than against a datasheet number. If the run also twists, say so: a cable rated only for bending will fail early on an axis that rotates, and the fix is a torsion-rated construction rather than a thicker jacket.

Typical applications for this fanuc encoder a660 cable

• FANUC robot axis encoder feedback cable replacement on R-30iA and R-30iB
• Drop-in lead for the A660-2005 / T652 / T859 cable sets
• Alpha and beta pulse coder feedback on machining center servo axes
• High-flex production cells running continuous drag-chain tracks
• Spare-lead programs where a failed encoder cable costs a full shift

How to specify your build

1. OEM number off the old cable, or the connector family and pin count.
2. Axis card or controller model for the far end.
3. Length, and whether the run is fixed or in a carrier.
4. Fixed or moving – this decides stranding and jacket.
5. Connector orientation, straight or right-angle, and the back-shell style.
6. Quantity, and whether this is a sample or a production order.

Workmanship and testing

Terminations on FANUC Robot Encoder Cable builds run from 32 to 12 AWG, and the work is held to IPC/WHMA-A-620 Class 3 inside an ISO 9001 system. No FANUC unit is packed until continuity and pinout check out, and seal checking is quoted whenever an ingress rating is on the drawing.

Material declarations against RoHS and REACH are issued per project, alongside the dimensional and electrical reports agreed at quotation; see certifications, compliance and material declarations. Where your drawing names a UL style or another approval, the build follows your drawing and ships with the supporting document rather than a claim of our own. For continuous motion the stranding, lay length and jacket are built to the flex method described under continuous-flex construction and flex-life testing, with the cycle count defined in the test scope. Related reading: our test and measurement work. Tooling for this build is cut in our own tool room and belongs to your program, so a repeat run years later starts from the same tool.

Custom builds and ordering

FANUC Robot Encoder Cable prototypes start from 1 to 50 pcs and ship in 3 working days. Series supply starts at 500 pcs and takes 14 working days after approval. Tooling not already held adds around 10 working days. FANUC builds ship under your part number and labeling for OEM and ODM orders, and material certificates with first-article reports are available.
