M8 / M12 5-Pin Right-Angle PUR Sensor Cable (Gray)
5-pin right-angle sensor cable for M8 / M12 family in oil-resistant gray PUR jacket. IP67, IEC 61076-2-104/2-101, -25 to +85°C. For factory sensor runs exposed to oil and coolant.
Description
Last updated: 7 September 2026
Overview
5-pin right-angle sensor cable for M8 / M12 family in oil-resistant gray PUR jacket. IP67, IEC 61076-2-104/2-101, -25 to +85°C. For factory sensor runs exposed to oil and coolant.
Key Features
- Standards-compliant connectors — IEC 61076-2-104 (M8 family) and / or IEC 61076-2-101 (M12 A-Coded family), ensuring mechanical and electrical interchangeability with field-installed hardware.
- IP67 mated protection — fully sealed at the coupling to block dust ingress and temporary water immersion (1 m / 30 min).
- Threaded M8 / M12 coupling — vibration-resistant 8 mm or 12 mm thread lock prevents accidental drop-outs in factory environments.
- Gold-plated brass contacts, brass nickel-plated coupling nut — corrosion resistance and low contact resistance (≤5 mΩ).
- PA contact carrier / TPU overmould — robust mechanical integrity and strain relief at the mould / cable transition.
- PVC or PUR jacket options — PUR variants add oil, coolant and UV resistance for wash-down or outdoor use.
- Wide operating range — typically -25 to +85 ℃ with >100 mating cycles.
Typical Applications
- Industrial sensors and actuators (proximity, photoelectric, limit switches, encoders)
- Factory automation, robotic cells, AGV / AMR power and signal links
- Machine vision panels, I/O modules, distributed field I/O blocks
- Food & beverage, packaging, printing, automotive assembly lines
- Outdoor / IP67 field installations and diagnostic tethering
Specifications
| Connector | M8 or M12 5-Pin A-Coded, Right-Angle Male/Female |
|---|---|
| Standards | IEC 61076-2-104 (M8) / IEC 61076-2-101 (M12) |
| IP Rating | IP67 |
| Rated Voltage | 60 V AC/DC |
| Rated Current | 4 A per pin |
| Conductor | 5 x 26 AWG |
| Jacket | PUR (oil/UV resistant, gray) |
| Operating Temperature | -25 to +85 °C |
| Mating Cycles | >100 |
Packaging
- Supplied in polybag with product code and lot information; bulk reels available on request.
Installation Notes
- Confirm pin coding (A-Coded for sensors / signals; never cross with D-Coded Ethernet or X-Coded Cat6A cabling).
- Tighten the threaded coupling by hand (typical torque 0.4 – 0.6 Nm for M8, 0.8 – 1.0 Nm for M12). Do not use tools that can over-torque and crack the housing.
- Cap unused M8 / M12 ports to preserve IP rating when unmated (IP ratings apply to the mated pair).
- Minimum bend radius typically 5 x cable OD (10x for continuous flex / drag-chain).
Image Reference

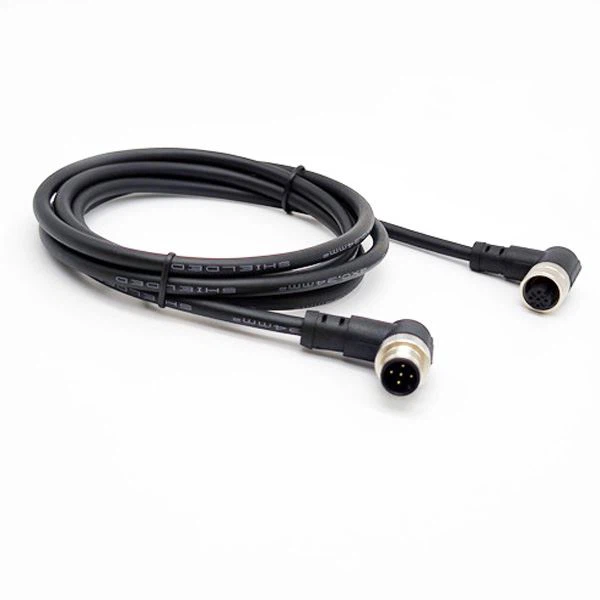

Product image 12: sensor-right-angle-m8-m12-5pin cable.webp
You May Also Need
Frequently Asked Questions
Which connector does M8 / M12 5-Pin Right-Angle PUR Sensor Cable use?
It is built around M8 or M12 5-Pin A-Coded, Right-Angle Male/Female.
What ingress protection does M8 / M12 5-Pin Right-Angle PUR Sensor Cable have?
Sealing is rated IP67.
What jacket material does M8 / M12 5-Pin Right-Angle PUR Sensor Cable use?
The jacket is PUR (oil/UV resistant, gray).
Additional information
| Connector | M8 or M12 5-Pin A-Coded, Right-Angle Male/Female |
|---|---|
| Standards | IEC 61076-2-104 (M8) / IEC 61076-2-101 (M12) |
| IP Rating | IP67 |
| Rated Voltage | 60 V AC/DC |
| Rated Current | 4 A per pin |
| Conductor | 5 x 26 AWG |
| Jacket | PUR (oil/UV resistant, gray) |
| Operating Temperature | -25 to +85 °C |
| Mating Cycles | >100 |
