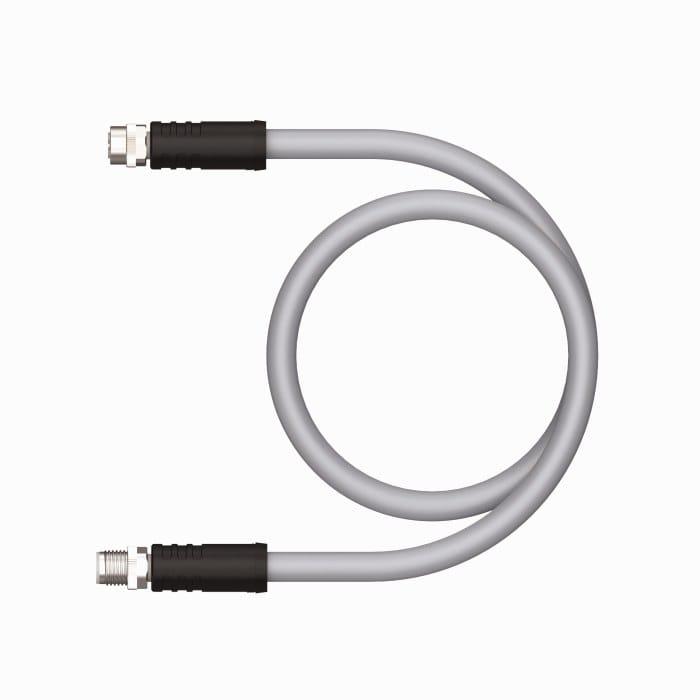

M12 IP69K Washdown Cable with Stainless Steel Coupling Nut

Last updated: 7 September 2026

This m12 ip69k washdown cable is for the places where an ordinary PUR Ethernet cordset dies. Not because the connector was badly made, but because a food plant cleans differently from a machine shop: high pressure hot water at close range, caustic foam, peracetic acid, and a thermal cycle from production temperature to a cold rinse several times a day.

Why the standard cordset fails

Three mechanisms do the damage. The first is chemistry: cleaning agents and sanitisers attack the plasticiser in a standard PUR jacket and the surface of a plated brass nut. The second is thermal cycling: a connector tightened at production temperature sees the joint relax when it is hit with cold rinse water. The third is mechanical: a brass nut that has been sprayed with a sugar solution and then dried will not undo by hand, so it gets changed with a tool, which damages the thread and the panel receptacle with it.

What is different in the construction

The coupling nut is the visible change. Competitor washdown ranges use a 316L stainless nut, material 1.4404, which resists the cleaning chemistry and does not gall against a stainless receptacle thread. Behind it, the seals are EPDM or FKM rather than the usual NBR, chosen against the temperature range and the sanitiser in use, and the overmould is polypropylene or a food-contact grade compound. A serrated nut face is sometimes specified so the joint does not back off under vibration. Which of these applies to the part you are buying has to be confirmed against the supplier build sheet.

Where it goes

• Filling and packaging lines that are foamed and rinsed every shift
• Dairy, meat and ready-meal plants with caustic and peracetic cleaning cycles
• Hygienic machine vision stations that keep the Ethernet run in the washdown zone

Food contact and cleaning agent claims

Competitor literature for this category references FDA 21 CFR 177.2600 for the elastomeric parts and Ecolab testing of cleaning agent resistance. We are not repeating either as our own claim. They are material-level statements that depend on which compound is actually moulded, and the distinction matters in a plant that will be audited. If you need a documented food contact position, ask for it before ordering and we will supply the supplier document or say that we cannot.

Ratings still to be evidenced

The ingress ratings quoted for comparable products run to IP65, IP67, IP68 and IP69K, and the temperature range to -25 to +105 C. Those are plausible for this construction and they are not yet ours. IP69K describes a specific high pressure, high temperature spray test, and quoting it without the report is the kind of claim that fails an audit. Ask for the test documentation before this goes into a hygienic specification.
