IP67 Right-Angle M12 D-Code 4-Pin Industrial Ethernet Cable

Overview

This IP67 right angle m12 d-code cable brings a 90-degree, 4-position D-coded M12 connector to machine vision cameras, switches and other PROFINET endpoints where a straight overmold would bend the cable too sharply at the port.

The 4-position D-coded contact layout carries a single 100 Mbit/s industrial Ethernet channel, which is the configuration PROFINET and many industrial camera platforms specify for real-time I/O and image traffic. Because the connector housing turns the cable ninety degrees, the cordset sits flush against camera housings, junction boxes and control cabinets whose ports face a wall, a bracket or another connector.

Key Specifications

The table below lists the configuration shown in the product photo.

Construction and Materials

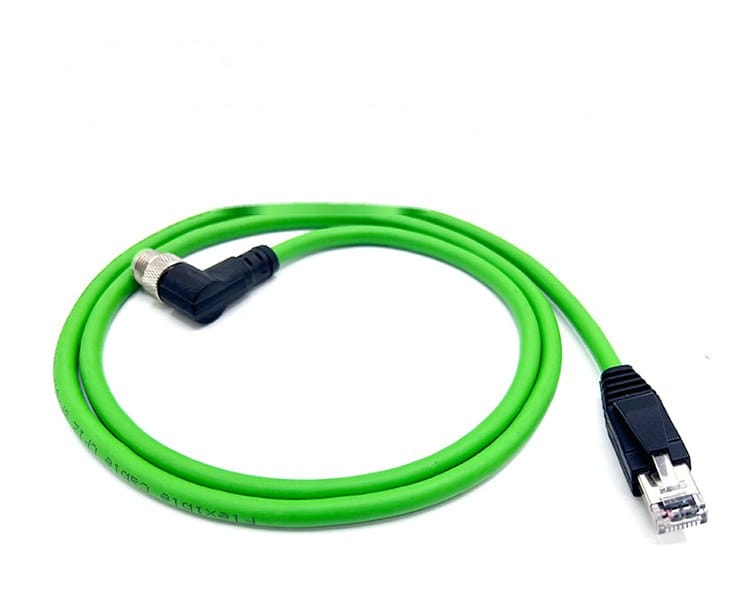

The M12 end is molded directly onto a green circular jacket, and the threaded metal coupling nut is knurled so technicians can finger-tighten it in enclosed spaces. Inside, the four contacts land on twisted pairs with an overall shield, matching the screened wiring that D-coded Ethernet ports expect. The opposite end is a standard RJ45 plug with a strain-relief boot, so the cordset runs from any conventional Ethernet port straight into the sealed M12 field connection.

Typical Applications

Typical mounts include industrial area-scan and line-scan cameras, IO-Link masters with Ethernet uplinks, compact switches mounted on DIN rail close to a cabinet wall, and any PROFINET device installed with its port facing a mounting surface. The right-angle exit also shortens the clearance a service loop needs behind the device, which helps in shallow enclosures.

Compatibility and Fitment

The connector follows the D-coded keyway defined in IEC 61076-2-101, so it mates with standard D-coded M12 female or male ports regardless of manufacturer. The RJ45 end works with ordinary Cat5e/Cat6 structured cabling ports. Confirm the port gender on your device before ordering: this assembly presents a female M12 field-attach side and is commonly used where the device carries male D-coded contacts.

Custom Builds and Ordering

Length, jacket material and labeling can be specified when you order. If your drawing calls for a different exit direction, additional shielding classes or a special overmold shape, send us the sketch and target quantity and our engineering team will quote the tooling and lead time.

Packaging and Shipping

Each cordset is bagged with a labeled dust cap on the M12 interface, then packed in a protective carton. Bulk packaging on reels or in individual boxes is available for OEM volumes.

Quality and Compliance

Assemblies are tested for continuity and shield integrity before shipment, and the molding process is checked for full encapsulation around the connector shell. If you need a specific test report with your order, note it in the RFQ and we will include it. See the IEC 61076-2-101 circular connector standard for the governing interface specification.
