Which connector does Barcode Scanner Cable with Coiled Cord, DB9 to RJ45 use?

It is built around DB9 female, serial RS-232.

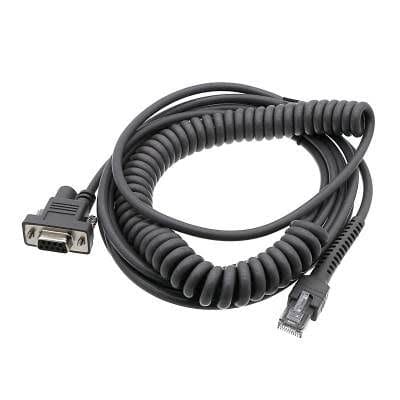

Coiled Barcode Scanner Cable, DB9 to RJ45

Q: What lengths does Barcode Scanner Cable with Coiled Cord, DB9 to RJ45 come in?

Stretched length build to order.

Last updated: 13 September 2026

Overview

A coiled barcode scanner cable is what you reach for when the scanner is handheld and the host does not move. The coil lets the operator pull the scanner out to read a pallet and lets the cable retract out of the way when they let go. That is also the part of the assembly that wears out, because a coil is a spring: every pull is a flex cycle, and the failure is nearly always at the point where the coil stops and the straight tail starts. We build the coil to your working reach and anchor it properly at both tails.

Key Specifications

Connector A	DB9 female, serial RS-232
Connector B	RJ45 8P8C, scanner head end
Cable style	Coiled (curly) section with straight tails
Interfaces	RS-232; USB and PS/2 builds on the same platform
Length	Stretched length build to order
Marking	Scanner family printed on the coil
Jacket	PVC standard; PUR for cold stores and harsh sites
Strain relief	Molded at both ends, coil anchored at the tails

Specifying the coil: reach, not cable length

The number that matters is the working reach, not the amount of cable. A coil quoted by cable length tells you almost nothing about how far the operator can pull. Give us the relaxed length, the stretched working length, and how many pulls a shift the cable has to survive:

What to specify	Why it matters	What happens if it is wrong
Relaxed length	Sets how much cable hangs on the bench	Cable drags on the floor or fouls the packing area
Stretched reach	Sets how far the operator can pull	Operator cannot reach the far pallet, or pulls the host over
Pull cycles per shift	Sets the conductor and jacket choice	Open circuit at the tail after a few months
Tail length each end	Sets where the flex point sits	The coil flexes inside the strain relief and breaks there

Why the original coil fails

Overstretching. A coil pulled past its working length takes a permanent set. It stops retracting, then it snags, then it breaks at the tail.
The tail flex point. If the coil is not anchored where it enters the molded relief, the flex happens inside the mold instead of in the coil, and that is a few hundred cycles rather than tens of thousands.
Cold. Standard PVC stiffens in a cold store and the coil loses its spring, so operators pull harder. PUR is the right answer there.
Trolley wheels. On a warehouse bench the coil hangs down and gets run over. A shorter relaxed length or a retracting hanger fixes it.
Connector side-loading. The DB9 end gets kicked at floor level on a tower PC, and the shell cracks.

Most of these scanners present scanned data as simple serial output or as keystrokes, which is why the same mechanical cable shows up on RS-232, USB and keyboard wedge hosts. If you want the background on how the data is produced, the barcode reader article is a good starting point.

Identifying the cable you have now

Look at the host end first. A DB9 female means a serial host; a USB-A means a USB host; a mini-DIN means a keyboard wedge. This decides the build more than anything else.
Look at the scanner end. A modular RJ45 style plug is the common pattern, but the keying and the latch position vary by family.
Read the label on the scanner, not the cable. The model gets us to the pinout; the cable usually carries no part number at all.
Measure the coil relaxed and fully stretched, with the scanner in the operator hand.
Photograph both connector faces straight on, in focus.

We build to the pinout you send or to the model you name. We do not claim to cover every scanner a brand has ever made.

Fitting and verifying a replacement

Fit the host end first, with the host powered down if it is a serial port.
Seat the scanner end until the latch clicks. A half-seated modular plug scans intermittently, which is easy to misread as a failing scanner.
Scan a known good label, then a damaged one, and check what the host receives in both cases.
Pull the scanner to full reach and let it retract ten times before you sign it off.
Confirm the host still sees the data at full stretch, not just at the bench.

Typical Applications for This Coiled Barcode Scanner Cable

Warehouse packing benches with a fixed host and a handheld scanner
Retail and grocery checkouts still running serial or keyboard wedge hosts
Production line stations where the scanner has to reach into a tote
Cold stores and food plants, where the jacket choice matters more than anything
Fleet replacements where the same scanner model is deployed across several sites

How to specify your build

Host interface: RS-232, USB or keyboard wedge.
Scanner model, from the label on the unit.
Coil reach: relaxed and stretched lengths.
Tail lengths at each end.
Jacket: PVC, or PUR for cold and grease.
Marking, if you want your part number on the coil.
Quantity, and whether this is a prototype or a production order.

Workmanship and testing

Assembly and inspection follow IPC/WHMA-A-620 Class 3 workmanship criteria under our ISO 9001 quality management system, and every unit passes 100% continuity and pinout testing before it is packed. Conductor range is 32 to 12 AWG. Coil builds get a pull-and-return check on the production batch so a coil that has taken a set does not reach you. Ratings quoted for the interface are the industry-standard values; the values your assembly is built and verified to are the ones stated on your drawing.

Custom builds and ordering

Prototype builds start from 5 pcs and ship in 3 working days; production orders start at MOQ 500 pcs and ship 14 working days after approval. Coil tooling for a non-standard diameter adds about 10 working days. OEM and ODM builds ship under your part number and labeling, with material certificates and first-article reports available on request. Factory audits and video line tours can be arranged.
