IBM 12V Powered Cable, 12V USB to 2x3 Scanner

Overview

The 12 V Powered USB receptacle is the lower-power cousin of the 24 V version, and it is what feeds low-draw peripherals such as a barcode scanner on IBM SurePOS and other IBM point-of-sale hardware. This IBM 12V Powered cable is built in two device-end variants: the legacy 2×3 6-pin IBM scanner plug, which carries USB 2.0 data plus the 12 V rail, and a DC 5.5 x 2.1 mm barrel for devices that only need the 12 V supply. Both start from the same latching 8-pin plug at the terminal.

Key Specifications

Connector A	IBM 12V Powered USB male, 8-pin, latching
Connector B	2×3 6-pin IBM scanner plug or DC 5.5 x 2.1 mm
Interface	USB 2.0 data + 12 V DC power (USB variant) / 12 V DC only (DC variant)
Data Pair	28 AWG stranded tinned copper, twisted, foil shield
Power Pair (12 V)	22 AWG stranded tinned copper
Overall Shield	Foil + braid with drain wire
Jacket	PVC, black, 6 mm OD
Length	1 m to 5 m standard; OEM on request
Build standard	IPC/WHMA-A-620 Class 3 workmanship, ISO 9001 line
Testing	100% continuity and pinout, hipot on the finished assembly

Which 12 V variant do you need?

Both variants start at the same terminal plug and differ at the device end. Pick by what the peripheral needs, not by what the terminal has.

Variant	What it carries	Typical device	Note

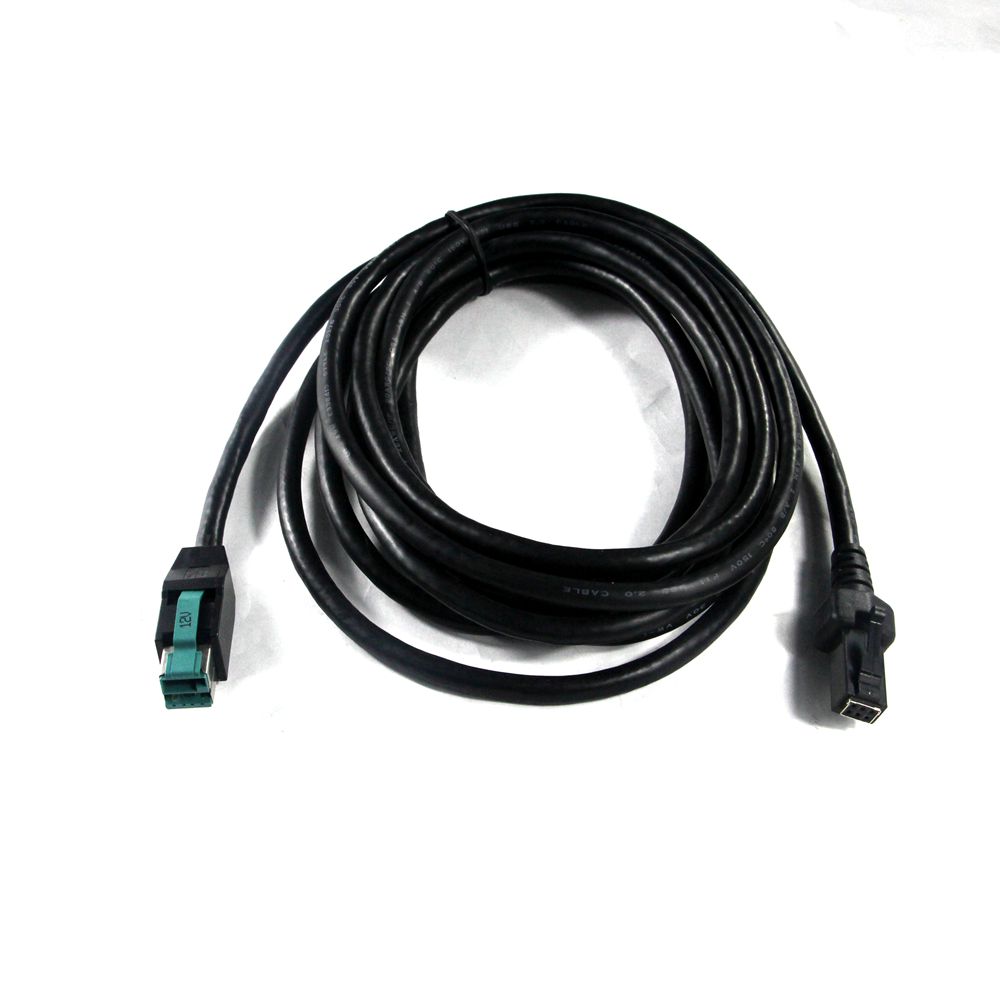

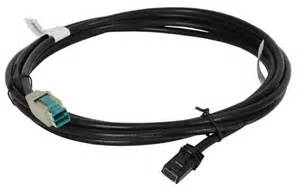

2×3 6-pin IBM scanner plug	USB 2.0 data + 12 V DC	Legacy IBM handheld scanner	Two rows of three pins – confirm the scanner model

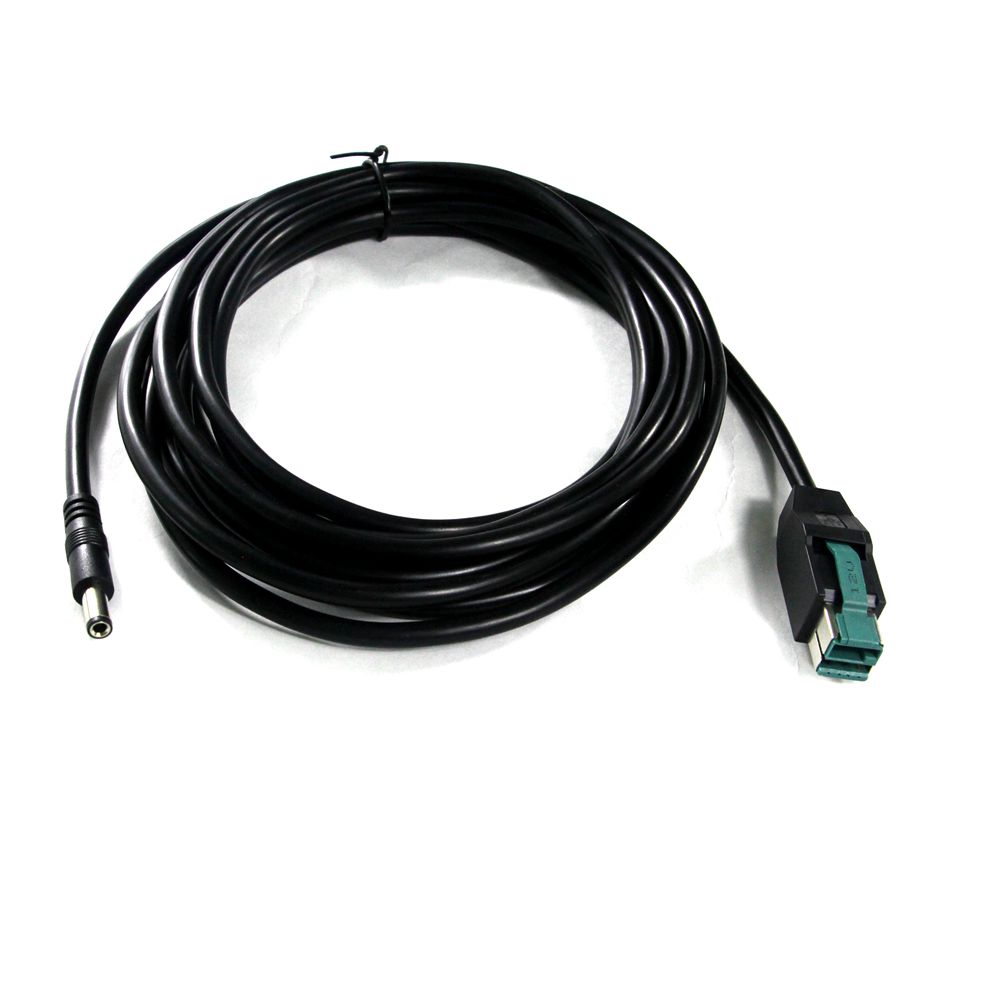

DC 5.5 x 2.1 mm barrel	12 V DC only	Display, older printer, small motorized unit	No data pair is connected in this variant
Both on one lead	Data to one device, power to another	Mixed counters with an older scanner	Stated per your drawing

12 V or 24 V: how to tell which rail you have

The two rails are different ports and are not interchangeable. If you order the wrong one, the plug will not seat properly, and forcing it is how peripherals get damaged.

What you are checking	12 V Powered USB	24 V Powered USB
Power pair we build in	22 AWG stranded tinned copper	20 AWG stranded tinned copper
Typical peripheral	Low-power scanner, small display	Printer, cash drawer, motorized scanner
Device end on this page	2×3 6-pin IBM plug or DC barrel	USB-B, and others per variant
How to confirm	Rating plate on the peripheral, or measure the rail	Same method
Interchangeable?	No	No

How do you identify the legacy 2×3 6-pin scanner plug?

Count the contacts: two rows of three, in a shrouded rectangular plug.
Do not confuse it with the 2×3 header on a PC motherboard or front-panel USB header. They look alike and are not the same part.
Check the scanner model against the plug before ordering – the 2×3 IBM scanner plug turns up on several generations of hardware.
Photograph the plug face straight on and the scanner rating plate; that pair of images is usually enough for us to confirm the build.

Why the 12 V rail is the one that gets overloaded

At 12 V, the same power means more current than at 24 V, so the drop on the power pair matters more. A single 22 AWG conductor is about 53 milliohm per meter; counting the out-and-back path, budget roughly 106 milliohm per meter of run.

Run length	Drop at 1 A	Drop at 2 A	What it means
1 m	0.11 V	0.21 V	Fine
2 m	0.21 V	0.42 V	Fine for low-draw scanners
3 m	0.32 V	0.64 V	Check the peripheral minimum input
5 m	0.53 V	1.06 V	Step up the power pair or shorten the run

If a scanner resets when it fires its illumination, measure at the device end under load. The fix is a heavier power conductor, not a thicker data pair – the loss is in the power pair.

Ordering an IBM 12V Powered cable: what we need

Which variant: 2×3 6-pin scanner plug, DC 5.5 x 2.1 mm, or both.
Confirmation that the terminal rail is 12 V and not 24 V.
The scanner model, if the device end is the 2×3 plug.
Length along the route, jacket color, and label text.
Whether the peripheral is USB-C – if it is, the POS USB-C PD cable may be the better answer.

Why the 2×3 plug is still in service

The 2×3 6-pin IBM scanner plug survives on counters because the scanners that use it survive too. A handheld scanner on a grocery or hardware counter is a working tool, not a consumable, and replacing one means re-training the operator and re-printing the configuration barcodes – so the site keeps the scanner and replaces the cable instead. That is the whole reason this build exists.

Order against the scanner model, not against the plug shape.
Check whether the device needs the USB data pair or only the 12 V rail; a DC barrel variant costs less and is often enough for a display.
Photograph the old plug before you scrap it. Once it is gone, the pin-out is guesswork.
If a site is standardising on newer scanners, tell us and we will build a mixed batch – 2×3 today, USB-C next year – so the spares cupboard matches the fleet.

How the assembly is built and checked

ISO 9001 covers the system and IPC/WHMA-A-620 Class 3 covers the work on IBM 12V Powered USB builds, across 32 to 12 AWG. continuity and pinout are tested on each IBM unit before it is packed, and seal checking is quoted whenever an ingress rating is on the drawing.

Lead time and ordering

IBM 12V Powered USB lots run from 1 to 50 pcs, out in 3 working days; volume starts at MOQ 500 pcs shipping 14 working days after approval. Tooling not already held adds around 10 working days. Your part number and labeling go on IBM shipments, and material certificates with first-article reports are available.

RoHS and REACH declarations are provided per project together with the agreed test reports; the documentation scope is listed under certifications and compliance. If your drawing specifies a UL style, we build to that drawing and supply the UL reference with the shipment instead of substituting an equivalent. Overmold material is selected for how it bonds to the jacket, following the method set out under how we run the overmold press. More background: cable assemblies for test and measurement. Any tooling we cut for this part stays yours, maintained in our own tool room under your part reference.
