8-Pin DIN Male to Female Panel-Mount Extension Cable

Overview

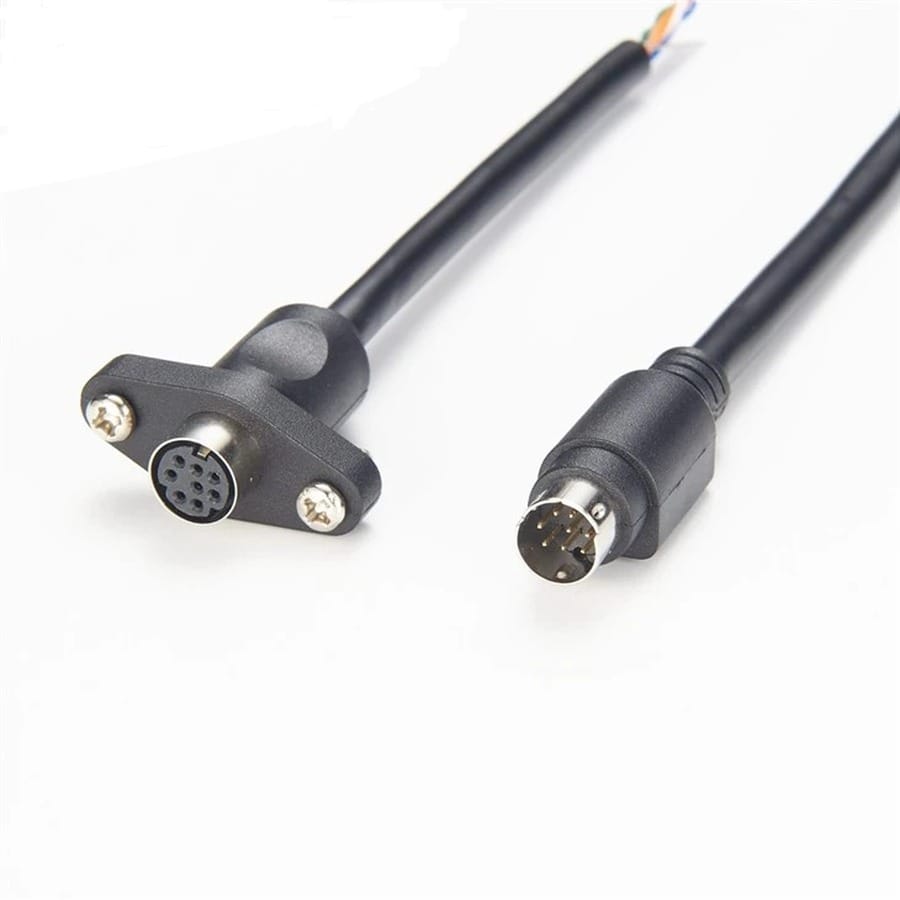

An 8 pin DIN panel mount cable moves a connection from the back of a device to the surface of a cabinet. The free end is an 8-pin DIN plug for the equipment; the other end is an 8-pin DIN socket carried on a two-screw flange that drops into a panel cutout. Once it is fitted, patching happens at the front of the rack instead of behind it, and the socket on the equipment itself stops taking the wear.

Key Specifications

Which 8-pin DIN you have

The eight-pin shell is used for multi-channel audio, for control links and by a handful of manufacturers for power and data combined. There is no single pinout across all of them, so the shell gets you the mechanical fit and nothing else:

These are industry-standard mechanical definitions for the DIN connector family. Your assembly is built and verified to the shell and pinout stated on your drawing.

Planning the panel cutout

• Cutout shape. An 8-pin DIN flange is round with a flat or a notch. Cut to the drawing, not by eye.
• Screw pitch. Measure center to center between the two fixing holes.
• Panel thickness. Sets the screw length and whether the flange sits flush.
• Depth behind the panel. The socket body plus the bend radius of the cable needs more room than it looks like on a drawing.
• De-burr the opening. A rough edge is what cracks a flange under tightening.

If you are fitting several, a patch panel layout with the ports labeled saves more time than any other part of the job.

Why the equipment socket fails instead of the cable

• Repeated re-patching at the back of a rack wears the socket on the device, which is soldered to the board and expensive to replace.
• Blind connection. Plugs get forced in at an angle when the operator cannot see the socket, and the pins bend.
• Cable weight hanging off a rear panel socket levers it until the joints crack.
• Dust and oxidation on a socket that is only used twice a year.
• Vibration in mobile racks working an unclamped plug loose.

Fitting a flange-mounted socket moves all of that wear onto a part you can replace in two minutes.

Fitting and verifying the panel mount

1. Cut and de-burr the panel opening, then test-fit the flange before wiring anything.
2. Fix the flange with both screws, evenly, without overtightening into a thin panel.
3. Connect the free plug to the equipment with the power off.
4. Confirm every conductor you need is present at the panel socket before you close the rack.
5. Label the panel port. It takes ten seconds and saves an afternoon later.

Typical Applications for This 8 Pin DIN Panel Mount Cable

• Bringing a legacy multi-pin DIN port to the front of a rack
• Industrial control enclosures needing an operator-accessible connection
• Broadcast and studio patch panels built around multi-channel DIN
• Custom equipment where the original port sits somewhere inaccessible
• Mobile and touring racks where rear access is impossible once loaded

How to specify your build

1. Shell and pin layout, from a photo of the connector face.
2. Pinout, or a statement that straight-through is what you want.
3. Flange style, screw pitch and panel cutout.
4. Cable length from the equipment to the panel.
5. Shielded or unshielded.
6. Marking for the panel port if it is one of several.
7. Quantity, and whether this is a prototype or a production order.

Workmanship and testing

Assembly and inspection follow IPC/WHMA-A-620 Class 3 workmanship criteria under our ISO 9001 quality management system, and every unit passes 100% continuity and pinout testing before it is packed. Conductor range is 32 to 12 AWG. Flange builds get a fit check against the stated cutout on the production batch. Any dimension quoted for the shell is the industry-standard value; your assembly is built and verified to your drawing.

Material declarations against RoHS and REACH are issued per project, alongside the dimensional and electrical reports agreed at quotation; see certifications, compliance and material declarations. Where your drawing names a UL style or another approval, the build follows your drawing and ships with the supporting document rather than a claim of our own. Overmold tooling for this part is designed and cut in our own tool room under in-house mold making and overmold tooling, so the tool belongs to your program and a revision is a machining job rather than a new negotiation. The wider context is covered under engineering support and design for manufacture review.

Custom builds and ordering

8-Pin DIN Male prototype builds start from 1 to 50 pcs and are out in 3 working days. Production is quoted from 500 pcs at 14 working days after approval. Tooling not already held adds around 10 working days. Your part number and labeling go on OEM and ODM 8-Pin shipments, and material certificates with first-article reports are available.
