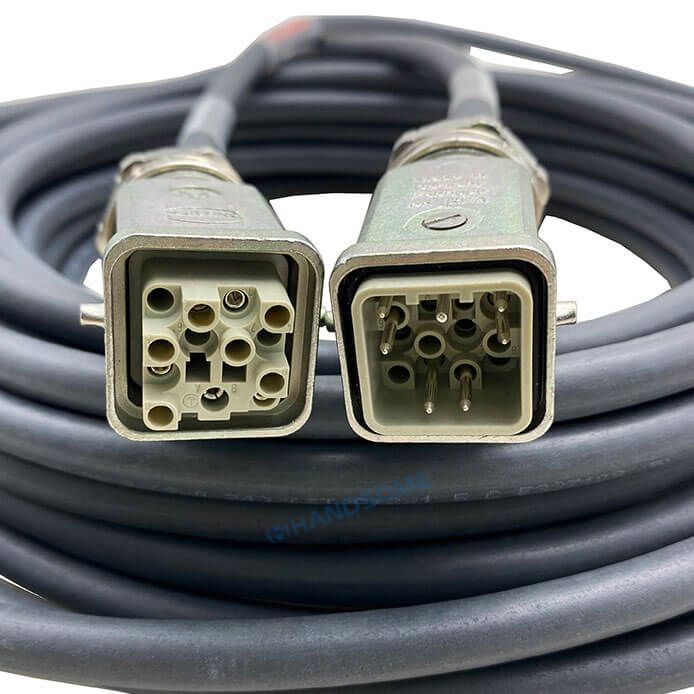

KUKA Robot Encoder Cable 00-174-775

Overview

Robot encoder cable wired to the KUKA encoder pin assignment for part number 00-174-775. The cable connects the encoder on the rear of a KUKA robot axis to the controller, carrying the encoder power and data pair through a flexible, drag-chain rated jacket. Built as a drop-in replacement lead for the OEM cable.

Key Specifications

Connector A	KUKA encoder side, 8-pin industrial rectangular, locking
Connector B	Controller side, KUKA controller receptacle or open lead
Cable	6-core + 1-pair, 24 AWG stranded tinned copper
Shielding	Overall foil + braid, drain wire
Jacket	PUR, black, drag-chain rated, oil-resistant
Bend Radius	10 x OD static, 7.5 x OD dynamic (drag-chain)
Length	5 m to 30 m standard; OEM on request

Construction and Materials

Six 24 AWG signal conductors plus one twisted pair for the encoder data lines, all wrapped in an overall foil + braid shield with a drain wire. The jacket is a halogen-free PUR compound rated for drag-chain use, with a matte black finish. The connector heads use a KUKA-compatible 8-pin industrial rectangular shell with a thumb-latch lock.

Typical Applications

KUKA robot axis encoder feedback cable replacement
Drop-in lead for the 00-174-775 cable set on KR and VK series
General 6-core + pair encoder feedback on industrial machinery
High-flex production cells using drag-chain cable tracks

Compatibility and Fitment

Compatible with KUKA encoder receptacles wired to the 00-174-775 pin layout. Cross-reference OEM part 00-174-775; the cable is a compatible replacement and is not an OEM KUKA product.

Custom Builds and Ordering

Length, jacket colour, connector back-shell, label print and connector orientation are configurable. New connector back-shells carry a mould fee. Sample 10 to 15 working days, production 20 to 30 working days.

Packaging and Shipping

Each cable coiled and tied, PE bag plus individual brown box. Larger reels available on request.

Quality and Compliance

Jacket tested to IEC 60332-1-2 flame propagation. Drag-chain rating tested to 5 million cycles minimum at the rated bend radius. RoHS 2.0 and REACH compliance on file. Machine-side wiring follows <a href=”https://www.iec.ch” rel=”nofollow noopener” target=”_blank”>IEC 60204-1</a> for electrical equipment of machines, and robot cell integration follows <a href=”https://www.iso.org/standard/73904.html” rel=”nofollow noopener” target=”_blank”>ISO 10218</a> where cited by the integrator.
