Encoder Feedback Cable with PUR Jacket for Digital Servo Loops
Last updated: 7 September 2026
This encoder feedback cable comes with a PUR jacket for digital servo loops.
The feedback link between a motor encoder and its drive carries position data that the control loop reads every cycle. When it degrades, the symptom is rarely a clean stop: it shows up as following error, position drift or nuisance trips that cost far more in machine time than the cable itself.
Digital Replacements For Older Wiring
Most retrofit enquiries start with an existing sin/cos or SSI run that is being upgraded to a digital interface, or a lead that has been spliced one time too many. We build the replacement to the encoder side and drive side connectors of the existing machine, so the swap is mechanical rather than a redesign.
Jacket and Flex Performance
The jacket is PUR, selected for oil and coolant contact on machine tools and for the abrasion a cable in a chain sees against its neighbors. Public competitor data for this class quotes an overall diameter of 6.8 mm or below for digital, incremental and SSI builds and 11.0 mm or below for sin/cos builds; those numbers are on record as a lead and still need to be measured on our production tooling.
Mechanical figures quoted as a target
- Flex life quoted in the region of five million bending cycles.
- Torsion capability quoted at plus or minus 30 degrees per meter.
- Silicone-free, CFC-free and LABS-free construction for paint-shop areas.
Test Methods On Record
Oil resistance is referenced against the DIN EN 60811-404 method and flame behavior against IEC 60332-1-2. We do not publish either as a passed result until the supplier test report for the actual batch is in our hands; until then treat both as an engineering target you can ask us about.
Ordering

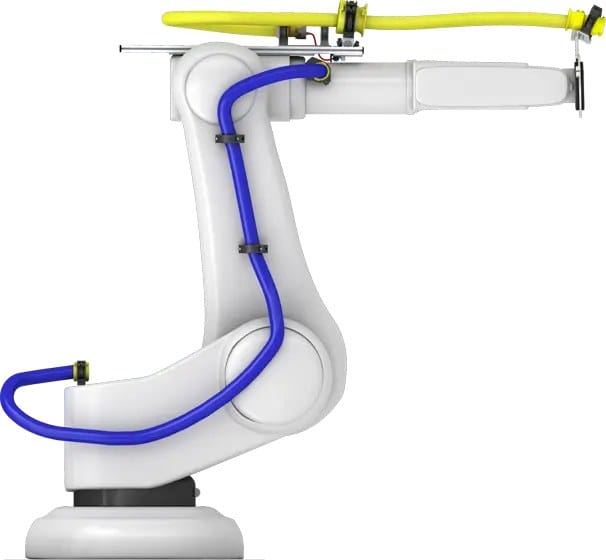

Specify the encoder type, the drive model, the length and the routing. Where the lead passes through a chain or a moving arm, tell us the travel and cycle rate and we will size the construction accordingly rather than quoting a static cable into a dynamic job.
You May Also Need
- M23 Screw Lock Cable for Servo Motor Power and Encoder Feedback
- FANUC Robot Encoder Cable A660 Series Compatible
Related Cable Ranges
Ethernet Cable Patch Cord • Audio Video Cable • Panel Mount Cable
Frequently Asked Questions
What jacket material does Encoder Feedback Cable with PUR Jacket for Digital use?
The jacket is PUR, high-flex.
Which interface does Encoder Feedback Cable with PUR Jacket for Digital carry?
Compatible with EnDat, HIPERFACE DSL, BiSS-C.
What housing material does Encoder Feedback Cable with PUR Jacket for Digital use?
The shell is PUR, high-flex.
| Product type | Digital encoder feedback cable |
|---|---|
| Jacket material | PUR, high-flex |
| Encoder interfaces | Compatible with EnDat, HIPERFACE DSL, BiSS-C |
| Typical outer diameter | 6.8 mm or below digital / 11.0 mm or below sin-cos (to be confirmed) |
| Flex life | Quoted around 5,000,000 cycles (to be confirmed) |
| Torsion | Quoted plus or minus 30 degrees per meter (to be confirmed) |
| Construction | Silicone-free, CFC-free, LABS-free |
