IP67 Right-Angle M8 6-Pin Sensor Cable

Overview

This IP67 right angle m8 sensor cable pairs a molded 90-degree male with a molded 90-degree female A-coded connector, so proximity switches, photoelectric sensors and small actuators can be wired in the tightest recesses of a machine frame.

M8 A-coded cordsets are the default wiring choice for compact sensors, and the six-position layout covers multi-conductor sensor and actuator circuits, including devices that use spare contacts for teaching or diagnostics. Specifying both ends as right angle lets the cable hug the machine surface on either side of the connection, which matters on sliding carriers, rotating towers and sensors mounted inside guard channels.

Key Specifications

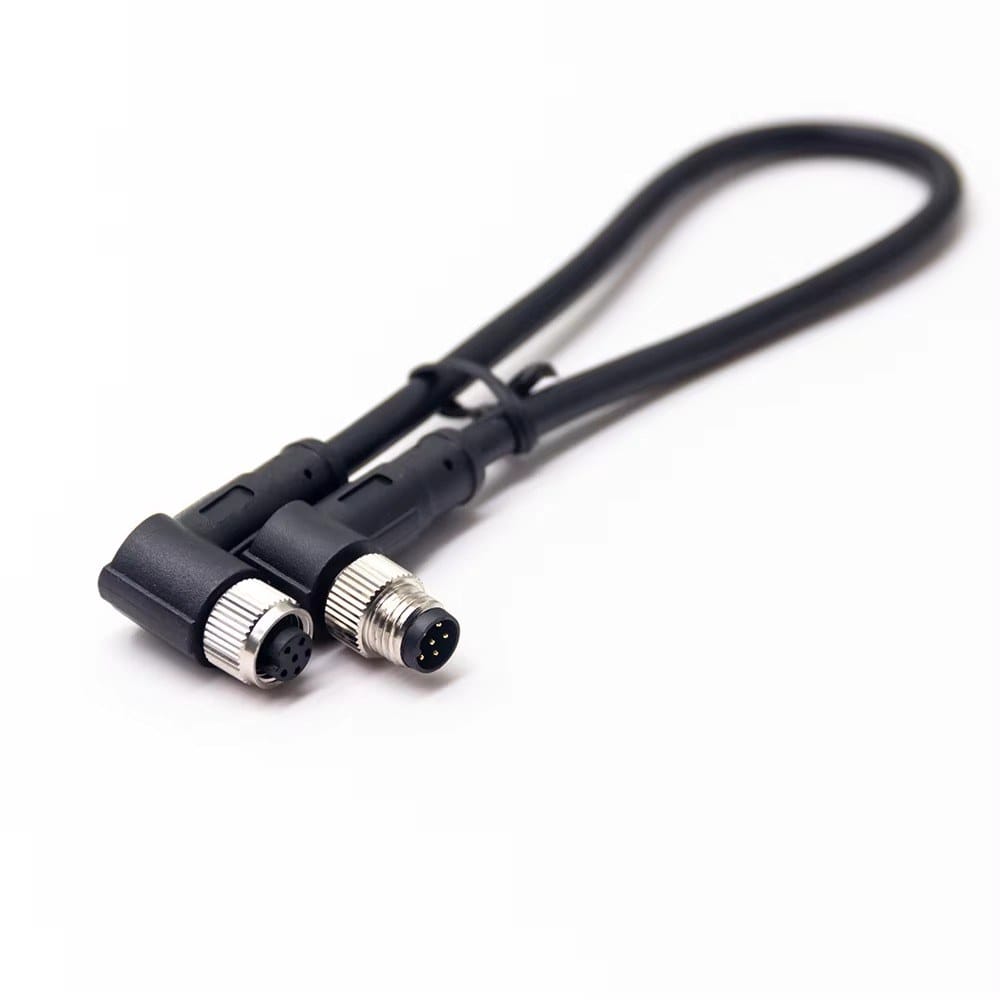

The table below lists the configuration shown in the product photo.

Construction and Materials

Both connectors are overmolded: the potting material flows around the shell and the cable entry, sealing the assembly against washdown and coolant splash. The coupling nuts are knurled metal for a secure finger grip, and the black circular jacket stays flexible across the drag and flex that small gauge sensor wiring normally sees inside a machine.

Typical Applications

Use this right angle m8 sensor cable on inductive and capacitive proximity switches, photoelectric sensors, magnetic cylinders, valve connectors with M8 inputs, and compact drive accessories. The male-to-female arrangement also makes it a clean extension cordset between a fixed sensor pigtail and a machine I/O block.

Compatibility and Fitment

The A-coded keyway and thread follow IEC 61076-2-104, so the cordset mates with standard M8 sensor ports from all major sensor brands. Match the six-position pinout to your device documentation before ordering, and tell us if your drawing calls for a different contact assignment.

Custom Builds and Ordering

Other pin counts, cable lengths and jacket materials are produced to order. Share your device list and required lengths, and we will quote matching cordsets with consistent labeling for your assembly line.

Packaging and Shipping

Cordsets ship individually bagged with mating protection over the contacts. OEM quantities can be packed with your part number labels.

Quality and Compliance

Every assembly passes a continuity check before packing, and the overmold is inspected for complete fill around both connector shells. Ask for a lot test sheet with your order if your process requires one. See the IEC 61076-2-104 M8 connector standard for the governing interface specification.
