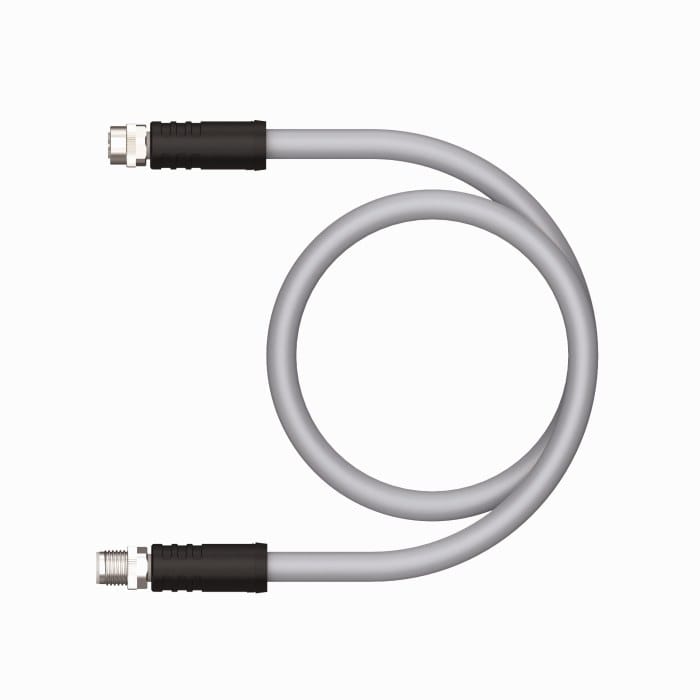

M12 M-Coded Motor Cable with Integrated Brake Conductors
Last updated: 7 September 2026
This m12 m-coded motor cable exists to remove one connector from a compact servo or geared motor. On a small three-phase motor with an integrated holding brake the usual arrangement is a power connector plus a second smaller connector for the brake winding: two cable entries, two gasketed joints, two part numbers to stock and two chances to mis-wire the machine. M-coding puts five power contacts and the protective earth into one M12 shell, so a single cordset carries the motor phases, the earth and the brake feed.
Why the keyway is the whole point
Every M12 connector shares the same thread, so from the outside a sensor lead and a mains motor feed look interchangeable. The internal key slot is what stops them being mated. M-coding is keyed so it will not enter an A-coded signal receptacle, and the M12 power codings are defined in IEC 61076-2-111. Confirm which edition applies before you write a specification around it, and check the mating face against the receptacles already fitted to your machines.
Sizing the brake conductors
The brake winding is the part that gets undersized. It is normally a DC load at 24 V, switched by a relay or a drive output, and the brake has to release within a stated time at the far end of the cable, so voltage drop over the run is the binding constraint rather than the current rating of the contact. Give us the brake current, the release time and the length and we will size the pair rather than copy a catalog value.
Construction options
The range covers straight and right-angle overmoulded cordsets in male and female, with a braided screen bonded to the connector shell so that inverter-borne noise stays off the brake and feedback circuits sharing the same tray. PUR is the default jacket where the run sees coolant, oil or continuous flexing; PVC is offered for fixed installation. Field-attachable screw and crimp versions let an installer cut to length on site. Six positions: five power contacts plus protective earth, 16 AWG class conductors.
Ratings we are still confirming
The voltage, current, temperature and ingress figures quoted for this range come from published competitor data, not from a verified datasheet for our part. Ratings on a mains connector are not interchangeable between suppliers. Tell us the load current, the ambient temperature and whether the run flexes, and we will return the datasheet covering the construction you are buying.
You May Also Need
- M12 K-Coded Power Cable for 630 V AC Motor Feeds
- M12 8-Pin A-Coded IP67 Waterproof Male-Female Extension Cable
Related Cable Ranges
Signal and Data Cables • Automotive Cable Wire Harness • Panel Mount Cable
Frequently Asked Questions
What connector coding does M12 M-Coded Motor Cable with Integrated Brake Conductors use?
M12 power codings per IEC 61076-2-111 (confirm applicable edition).
What jacket material does M12 M-Coded Motor Cable with Integrated Brake Conductors use?
PUR for oil, coolant and flexing; PVC for fixed installation.
What conductor does M12 M-Coded Motor Cable with Integrated Brake Conductors use?
16 AWG class, exact mm2 pending supplier datasheet.
| Connector series | M12, M-coded, 6 positions (5 power + PE) |
|---|---|
| Coding standard | M12 power codings per IEC 61076-2-111 (confirm applicable edition) |
| Typical supply | Three-phase AC motor feed with DC brake pair in the same shell |
| Rated voltage | 600 V AC class (pending supplier datasheet) |
| Rated current | 8 A class (pending supplier datasheet and test conditions) |
| Conductor cross-section | 16 AWG class, exact mm2 pending supplier datasheet |
| Shielding | Braided screen bonded to connector shell |
| Jacket material | PUR for oil, coolant and flexing; PVC for fixed installation |
| Versions | Straight / right-angle, male / female, field-attachable screw or crimp |
| Typical loads | Servo and gear motors with holding brake, distributed machine-mounted drives |
| Compliance files | RoHS and REACH declarations pending supplier confirmation |
