Cat6A IP67 Industrial Pigtail, S/FTP RJ45 Cap

Overview

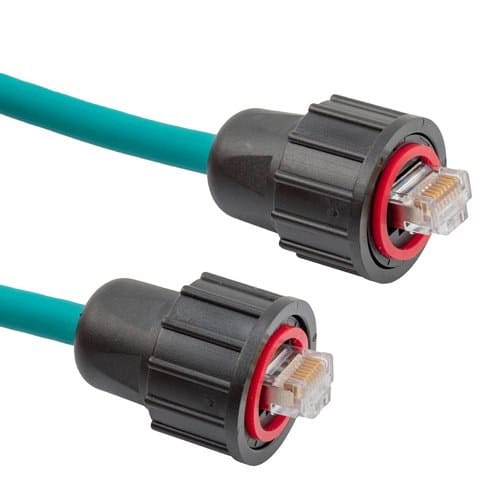

A Cat6A IP67 industrial pigtail solves one specific problem: getting a shielded Ethernet link through a cabinet wall or into a sealed housing without leaving a connector exposed. The bulkhead side terminates in a threaded sealing coupler with a tethered dust cap, and the other side presents a flying shielded RJ45 plug – or the reverse, depending on which end of the run is harder to reach. It is the part that lets you close the enclosure and still service the link.

Key Specifications

Product type	Category 6A sealed pigtail assembly
Cable	Cat6A S/FTP, 26 AWG stranded copper, foil per pair plus overall braid
Jacket	PUR or FR-TPE, UV-stabilised, outdoor rated
Ingress rating	IP67 in the mated condition – confirm per build
Sealed end	Threaded RJ45 sealing coupler with tethered dust cap
Open end	Shielded RJ45 plug
Rated temperature	-40 to +75 C – confirm per build
Power	Suitable for IEEE 802.3bt PoE++ device feeds
Standard lengths	1, 2, 3, 5, 10 m

Three states, and only one of them is sealed

An ingress rating describes a mated pair, not a connector. This is where sealed installations go wrong: the coupler is fitted, the rating goes on the drawing, and then the port spends most of its life unmated. The table below is the honest version.

State	What is protected	What to do about it
Mated to a sealed plug	Full IP67 on the assembly	Tighten the coupling to the specified torque and support the cable
Capped with the tethered dust cap	Dust and splashes, not immersion	Fit the cap every time – it is tethered precisely so it does not get lost
Open and unmated	Nothing	Treat as an open port; do not rely on the rating

The coupling must be tightened to the specified torque and the cable must be supported so that strain does not pull the seal out of alignment. A pigtail that is correctly rated but installed unsupported will still leak.

Only the first of those three states has a number attached, and a rated coupling standing open is protected by nothing. Our IP rating reference sets out the test conditions behind each class.

The dust cap is the part people lose

On a pole-mounted camera or an outdoor cabinet the coupler is only mated once, at installation. After that it sits open through every service visit, every washdown and every season. A tethered cap means it is still attached when the technician comes back down the ladder; a loose cap ends up in a pocket and then in a bin. If you are specifying these for a fleet of outdoor enclosures, say so and we will make the tether standard on every unit rather than an option.

The RJ45 interface is unchanged inside the sealed shell, so the pigtail is transparent to the network – the sealing hardware is what you are buying, not a different pinout. Confirm the rating and the test method against the test report before writing it into a project specification.

Power over the same cable

The assembly is intended for IEEE 802.3bt powered devices, so a single drop serves cameras, access points and small-cell radios without a separate mains feed. Pair resistance rises with length and with temperature, so voltage drop deserves a check on the longest runs feeding high-draw devices – and a sealed enclosure in full sun is a hotter environment than the one the device datasheet assumes.

Where it replaces a standard lead

Outdoor telecommunications cabinets and street-side enclosures
IP cameras on poles and building corners
LED and video-wall tiles, where the link passes through a sealed panel
Weighbridges, gate controllers and kiosk enclosures
Food-production areas where hose-down cleaning is routine
Buried or trenched runs using our Cat6A outdoor direct-burial patch cord

It is the Category 6A successor to the Category 6 sealed pigtails in this range, and the two share the same panel cut-out, so existing enclosures can be upgraded without new drilling. Where the enclosure is washed with high-pressure hot water rather than weather, look at our Cat6A IP69K washdown patch cord instead.

Typical applications for this Cat6A IP67 industrial pigtail

Cabinet feed-throughs that have to stay serviceable
PoE cameras and wireless access points on external walls
Rental and temporary structures where the enclosure is opened repeatedly
LED wall panels exposed to weather
Marine and dockside equipment enclosures
Industrial enclosures upgraded from our Cat6 S/FTP IP67 pigtail patch cord

Ordering

Standard stock lengths are 1, 2, 3, 5 and 10 m; other lengths on request. Tell us which end needs the coupler, whether the cap should be tethered, and whether the enclosure is washed down or simply weather-exposed.

Workmanship and testing

Build standard for Cat6A IP67 Industrial builds is IPC/WHMA-A-620 Class 3 under ISO 9001, with terminations from 32 to 12 AWG. 100% continuity and pinout are checked on every Cat6A unit before packing, and seal checking is quoted whenever an ingress rating is on the drawing.

Every production run can ship with RoHS and REACH declarations and the electrical report agreed at quotation; see certifications and material declarations. UL styles and other named approvals are built to drawing: we source to the style you specify and document it, rather than asserting a listing we do not hold. For the sealed version we follow the gasket path and overmold-to-jacket bond practices documented under IP-rated sealing validation. The wider context is covered under cable assemblies for industrial automation and robotics. Tooling is quoted separately, cut in-house rather than brokered out, and owned by you.
