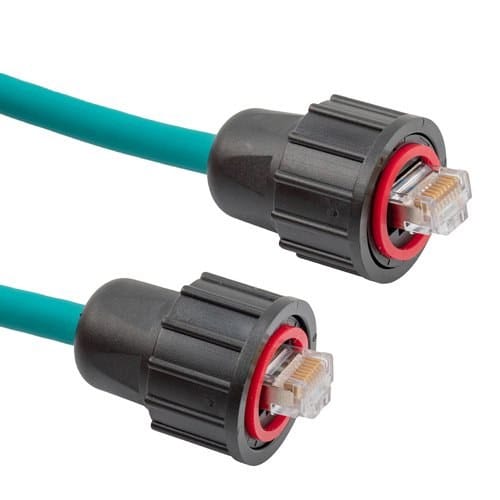

Cat6A Outdoor Direct-Burial Cord, Gel-Filled IP68

Overview

A Cat6A outdoor direct-burial patch cord is built for the trench rather than the rack. A standard patch cord dropped into soil fails slowly and expensively: water wicks along the pairs, the foil corrodes and the link degrades over one or two wet seasons. This assembly uses a gel-filled core so that a nick in the jacket does not turn into a capillary, and a UV-stabilised polyethylene jacket intended to sit in soil and sunlight without embrittling.

Key Specifications

Product type	Outdoor direct-burial Category 6A patch cord
Conductor	23 AWG solid bare copper, 4 pairs – confirm per build
Water blocking	Gel-filled core
Jacket	UV-resistant LLDPE, direct-burial rated
Contact plating	50 microinch gold nominal – confirm per build
Ingress rating	IP68 with the shroud fitted, one or both ends – confirm per build
Rated temperature	-40 to +75 C – confirm per build
Options	Matching IP68 coupler for field extension

Water blocking: what the gel is for

Water does not need a hole to travel along a cable – it needs a gap, and a four-pair core is mostly gap. Once moisture gets in at one end it wicks along the pair interstices for meters, and the damage appears far from the entry point. Blocking fills those gaps so that ingress stops at the cut.

Method	How it works	Trade-off
Gel-filled core	Compound between the pairs blocks capillary ingress immediately	Most effective; messy to terminate by hand, needs cleaning
Swellable tape	Tape swells on contact with water to seal the core	Cleaner to handle; slower to block
Superabsorbent yarn	Dry yarn in the core absorbs and gels on contact	Clean and light; suited to longer runs

Gel filling is also the reason this cable is unpleasant to terminate on site, which is exactly why factory-terminated assemblies are the practical option for buried links. Where a run has to be joined in the field, use a closure rated for the environment rather than a standard coupler, or the blocking is undone at the first joint.

Jacket material for soil and sunlight

The jacket has to survive burial, ultraviolet exposure and the mechanical abuse of being pulled into a trench. Material choice is the difference between a link that lasts a season and one that lasts a decade.

Jacket	Strengths	Limits
LLDPE, UV-stabilised	Direct burial, ultraviolet resistance, moisture resistance, low cost	Stiff, poor oil resistance, not for flexing
PVC	General purpose, flexible, low cost	Degrades under ultraviolet, plasticizer loss in soil
PUR	Oil, abrasion and flexing resistance	Higher cost; over-specified for a static trench

Ends, shrouds and what IP68 covers here

The IP68 rating applies to the mated assembly with the shroud fitted, and it is not a property of the cable or of either half on its own. Fit the shroud on one end where the other end terminates indoors, or on both ends where the whole run is exposed. A matching IP68 coupler is available for field extension. Confirm the rating and the test method against the test report before writing it into a project specification.

Confirming that number is easier with the test conditions in hand: the IP rating reference lists what immersion and jet classes are tested for, and the parts of a run no ingress class ever covers.

Installation notes

Bury below the local frost and traffic depth; check local rules for warning tape and marker requirements.
Leave a service loop at each end inside a handhole rather than pulling the cable tight.
Support the vertical section at the riser so the weight of the soil does not load the connector seal.
Bond the screen at the building end; a buried screened cable with a floating screen is an antenna.
Backfill with fines around the cable where the trench is rocky – abrasion during settlement is a common cause of a slow failure.

Typical applications for this Cat6A outdoor direct-burial patch cord

Inter-building links between outbuildings and a main LAN
Perimeter security cameras and gate or door access controllers
Small-cell and radio backhaul drops
Service entrance runs for EV charging points
Above-ground outdoor runs in a sealed enclosure – see our Cat6A IP67 industrial pigtail with dust cap
Cost-sensitive outdoor runs using our Cat5e FTP outdoor direct-burial patch cord

Ordering

Send the run length, whether one or both ends need the shroud, and whether the trench is shared with mains. We will confirm the construction and the ends against a drawing before the assembly is built.

Workmanship and testing

Cat6A Outdoor Direct-Burial builds are made to IPC/WHMA-A-620 Class 3 workmanship inside an ISO 9001 system, over a 32 to 12 AWG range. No Cat6A assembly is boxed before continuity and pinout are confirmed, and seal checking is quoted whenever an ingress rating is on the drawing.

RoHS and REACH declarations are provided per project together with the agreed test reports; the documentation scope is listed under certifications and compliance. If your drawing specifies a UL style, we build to that drawing and supply the UL reference with the shipment instead of substituting an equivalent. For the sealed version we follow the gasket path and overmold-to-jacket bond practices documented under IP67 and IP68 sealing structures. The wider context is covered under cable assemblies for industrial automation and robotics. Any tooling we cut for this part stays yours, maintained in our own tool room under your part reference.

Custom builds and ordering

For Cat6A Outdoor Direct-Burial builds, prototypes run from 1 to 50 pcs with a 3 working day turnaround; volume orders begin at 500 pcs and ship 14 working days after sample approval. OEM and ODM Cat6A work ships under your part number and labeling, and material certificates with first-article reports are available. We hold 100 sets of mold tooling in house, so a standard body needs no tooling time and a new one adds about 10 working days.

Related outdoor and sealed assemblies

Full range: Ethernet cable patch cord range.

Frequently Asked Questions

Can I terminate a gel-filled cable on site?

You can, but it is slow and messy, and a poor joint undoes the water blocking. Factory-terminated assemblies are the practical answer for buried links.
