6.35mm (1/4″) to MIDI 5-Pin DIN Female Cable

Last updated: 13 September 2026

Overview

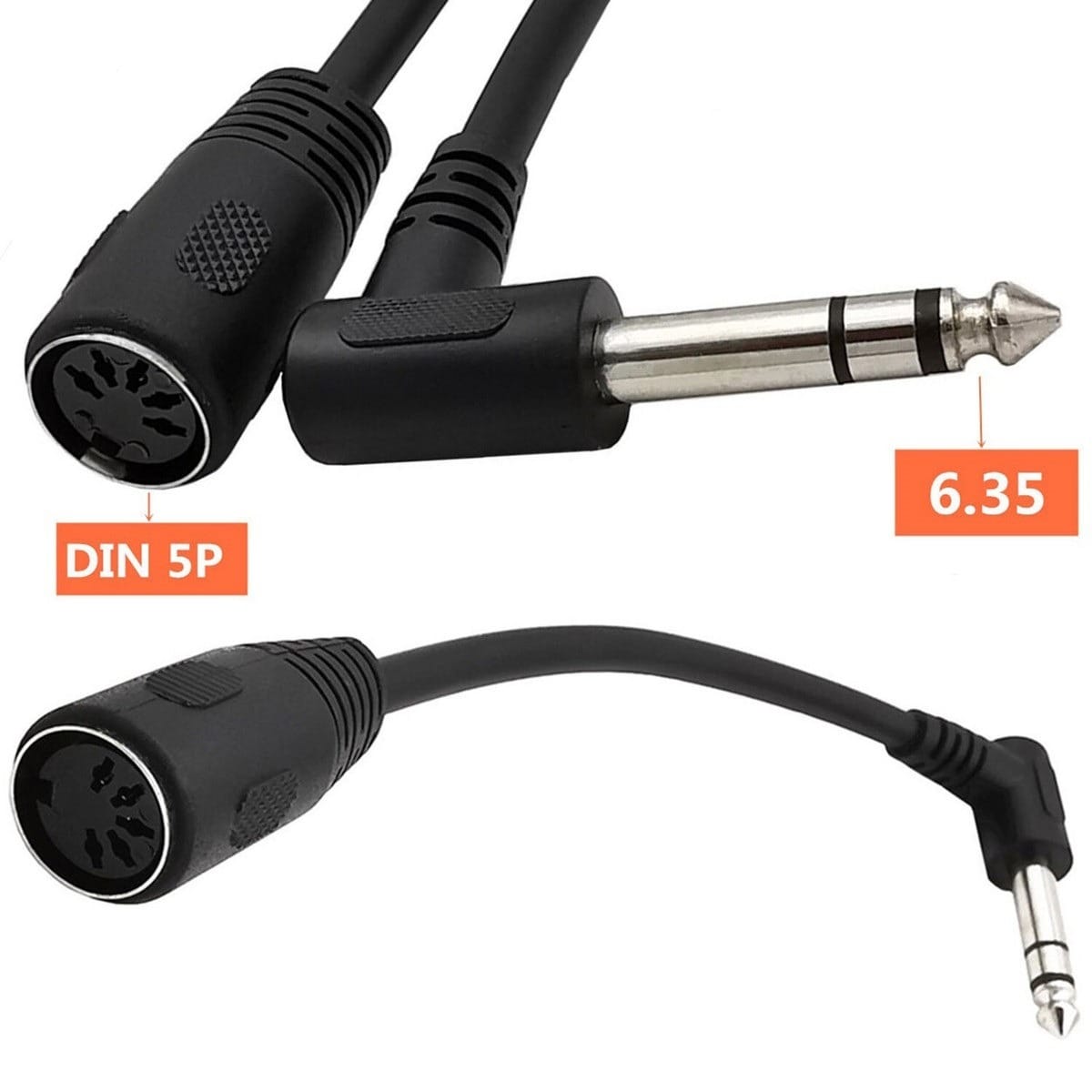

A 5 pin DIN MIDI female cable with a 6.35 mm plug on the other end is a connector adapter, and it is worth saying plainly what that means: there is no electronics in it. It works where the equipment genuinely presents MIDI on a quarter-inch jack, which a number of manufacturers did before the five-pin socket became standard, and where that jack is also used for footswitch, sync or control duties. It does not convert an audio output into MIDI data.

Key Specifications

The three pins that carry MIDI

On the five-pin shell only three pins are used. The interface is a current loop, not a voltage signal, which is why MIDI survives long runs and ugly wiring better than most people expect:

Those assignments are the industry-standard MIDI 1.0 definitions, not our own invention. Your cable is built to the pinout you send and verified to it.

What happens if you wire it backwards

This is the question that comes up most, and the answer is reassuring. Because MIDI is a current loop driving an opto-isolator, the usual result of a miswired cable is that nothing happens at all: no notes, no clock, no damage. The failures you will actually see are:

• Input to input. Two MIDI inputs connected together pass nothing, because neither end sources current.
• Pins 4 and 5 swapped. The loop is reversed, the opto-isolator never lights, and the link is silent.
• Shield grounded at both ends. This one is real: it creates a ground loop, and the symptom is hum or intermittent data rather than silence.
• A quarter-inch audio output plugged into a MIDI input. Audio is not a current loop, so nothing is transmitted and no harm is done.

The phone connector on the other end is the same jack used for audio, which is exactly why the two get confused.

Identifying what your 1/4 inch jack actually carries

1. Read the silk screen next to the jack. MIDI, sync, footswitch and CV are all printed differently on the panel.
2. Check the manual or the rear panel legend. If it says MIDI, the jack carries the same signals as the five-pin socket.
3. Note whether the jack is mono or stereo. A three-conductor jack can carry more than a two-conductor one, and the wiring differs.
4. Confirm the direction. Is it an input or an output? That decides which pin goes where on the DIN end.
5. Send us the pinout or the model and we will build to it rather than guess.

Fitting and verifying the link

1. Connect the DIN end first, with both devices powered down.
2. Seat the quarter-inch plug fully. A plug that is half out on a stereo jack can short contacts that are meant to be separate.
3. Send a note from the source and watch for activity on the receiving device, not just a connection light.
4. If nothing arrives, swap pins 4 and 5 before you suspect a fault. That is the single most common wiring error on this adapter.
5. Check for hum with the shield as wired, then with it lifted at one end, if the link is noisy.

Typical Applications for This 5 Pin DIN MIDI Female Cable

• Vintage synths and drum machines that put MIDI on a quarter-inch jack
• Connecting older gear to a modern MIDI interface or patch bay
• Studio racks where a DIN socket is inaccessible and the run needs a jack end
• Footswitch and sync connections where the same shell is reused
• Replacement leads for equipment whose original cable is no longer available

How to specify your build

1. Device model and what the jack carries.
2. Pinout from jack to DIN, if you have it.
3. Mono or stereo jack.
4. Direction: which end is the source.
5. DIN gender: female socket or male plug.
6. Length.
7. Quantity, and whether this is a prototype or a production order.

Workmanship and testing

Assembly and inspection follow IPC/WHMA-A-620 Class 3 workmanship criteria under our ISO 9001 quality management system, and every unit passes 100% continuity and pinout testing before it is packed. Conductor range is 32 to 12 AWG. Where the shield is specified as lifted at one end, that is built and verified as stated rather than assumed. MIDI pin functions quoted above are the industry-standard definitions; your assembly is built and verified to your drawing.

Custom builds and ordering

Prototype builds start from 5 pcs and ship in 3 working days; production orders start at MOQ 500 pcs and ship 14 working days after approval. New overmold tooling adds about 10 working days. OEM and ODM builds ship under your part number and labeling, with material certificates and first-article reports available on request.
