M12 L-Code Right-Angle Power Cable, 16 A / 63 V, IP67

Overview

This m12 l-code power cable angles the heaviest M12 power class out the back of the drive: the L-coded 4-plus-FE insert carries 16 A at 63 V, and the 90-degree exit sits flush where a straight coupling nut would not clear the cabinet wall.

L-coding is the 16 A workhorse of the M12 power family, and the right-angle body solves the geometry problem that comes with it: drive modules and compact power supplies often face their ports toward a wall or bracket, where a straight coupling nut cannot be gripped or routed. Angled exits keep the bend radius outside the connector instead of inside the cable.

Key Specifications

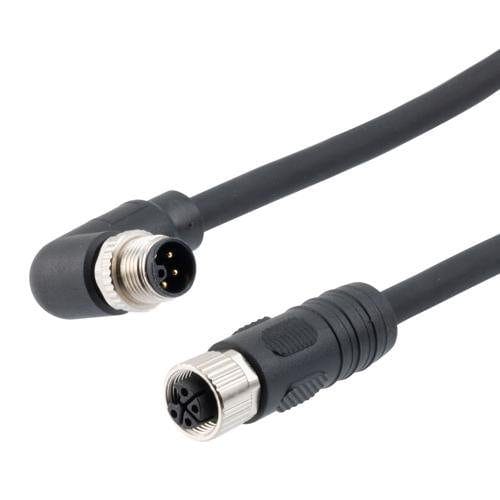

The table below lists the configuration shown in the product photo.

Construction and Materials

The overmolded body turns the cable ninety degrees from the coupling axis while the potting seals the full contact cavity, so ingress protection does not depend on the exit direction. The knurled nut still tightens with a standard grip even in the shallow clearance behind the device, and the power conductors are sized for the 16 A class.

Typical Applications

Fit it to servo drive power ports recessed in cabinets, robot base power connections where the socket faces the pedestal, busbar tap-offs on conveyor drives, and any L-coded port mounted close to a surface.

Compatibility and Fitment

The keyway follows the L-coding defined within the IEC 61076-2-101 M12 platform and mates with standard L-coded ports; it cannot mate with A, D or T-coded connectors. Confirm your port is L-coded before ordering.

Custom Builds and Ordering

Lengths, exit direction and conductor sizes are built to order. Send the drive model and panel drawing and we will quote the matching assembly.

Packaging and Shipping

Bagged with a dust cap over the mating face; bulk packs with OEM labels are available.

Quality and Compliance

Continuity across all contacts plus seal checks are completed on every unit before shipment. See the IEC 61076-2-101 circular connector standard for the governing interface specification.
