Custom Wire Harness Manufacturing

Built-to-print harnesses for rail, aerospace, medical, EV and semiconductor equipment — including EN 45545-2 rail builds, 800 V EV battery harnesses, MIL-DTL-38999 and Micro-D avionics looms, and cleanroom robot cabling. We work from your drawing, BOM or sample.

Rail
EN 45545-2 · rolling stock
Aerospace
MIL-DTL-38999 · Micro-D · Nano-D
Medical
Surgical robot · sealed joints
EV / storage
800 V · BESS 1000–1500 V
Robotics
EFEM · vacuum · wafer handling
Validation
Continuity · hipot · HVIL
Jacket
Silicone · PUR · PTFE
Volume
Prototype to production

Showing 25–36 of 43 results

MIL-C-26482 Series I Military Cable Assembly

A military mil 26482 cable built on MIL-C-26482 Series I bayonet connectors, shell sizes 08 to 24, wired to the contact layout you specify. Gold-plated contacts, braid and foil shield, PUR or neoprene jacket.

MIL-DTL-22992 Power Cable Assembly

A military mil 22992 cable for heavy power distribution on MIL-DTL-22992 Class L or Class R connectors, shell sizes 28 to 64. Silver-plated power contacts, neoprene or PUR jacket, built to the arrangement you name.

MIL-DTL-38999 Series III Military Circular Cable Assembly

A military mil dtl cable built around MIL-DTL-38999 Series III threaded circular connectors, shell sizes 09 to 25, wired to the insert arrangement you name. Shielded bundle, PUR or FEP jacket, strain-relieved backshell boots.

MIL-DTL-5015 Circular Power Cable Assembly

A MIL DTL 5015 cable assembly built to the shell size, insert layout and keying on your drawing: crimp or solder contacts, chain-lanyard dust caps, length and labeling to order.

MIL-DTL-83513 Micro-D and MIL-DTL-32139 Nano-D Cable

A military micro dtl 83513 assembly on MIL-DTL-83513 Micro-D and MIL-DTL-32139 Nano-D connectors, 9 to 51 contacts at 1.27 mm or 0.635 mm pitch. Shielded, gold-plated contacts, built to your layout.

Nano-D Space Harness Built to Drawing for CubeSat Internal Wiring

A Nano-D space harness built to drawing for CubeSat and small launch vehicle internal wiring, with exact lengths, breakouts positioned against the mechanical model, low outgassing materials, and serialized build records held against every unit. Send the pinout and the mechanical model.

OBD2 16-Pin Pigtail Harness

An OBD2 16-pin pigtail harness is a build-to-print assembly with a 16-position diagnostic connector on one end and open wire ends on the other. Choose an overmolded plug, an assembled housing or a female socket with flying leads; pinout, conductor count, jacket, length and far-end termination are set on the approved drawing. All electrical ratings and pricing are confirm per build or confirm per RFQ.

Oil Leak Detection Cable Assembly for Fuel Systems

An oil leak detection cable assembly carries and protects the sensing element that watches your fuel lines, tanks and generator rooms. Built to your route and pinout, with sealed connectors and cut-to-length runs.

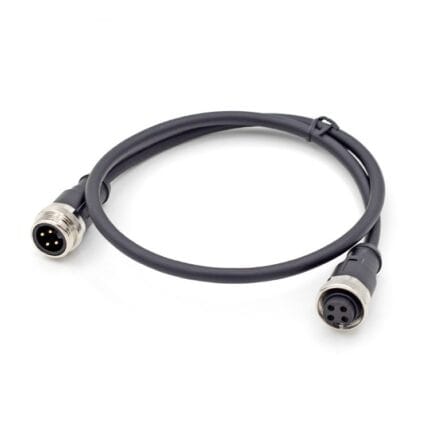

Overmolded Industrial Cable Assembly, Custom Strain Relief, IP67

An overmolded industrial cable assembly with custom strain relief geometry and sealed exits, built from your drawing or sample for machines, sensors and field equipment.

Patient Monitor ECG Lead Set, 5-Lead AHA

A patient monitor ECG lead set in 5 leads with AHA or IEC color coding, grabber or snap electrodes and a trunk connector built to your monitor pinout.

Railway Rolling Stock Harness Built to EN 45545-2 Cable Specifications

A railway rolling stock harness built with the fire safety cable grade your project names, for door control, brake sensors, HVAC and lighting circuits. Electron beam cross-linked halogen free constructions, or an equivalent you nominate on the drawing. Send a drawing for a quote.

Rugged RJ45 IP68 Military Ethernet Cable

A rugged military cable in Cat6 or Cat6A S/FTP with rugged RJ45 plugs, metal locking boots and IP68 sealing when mated to a matching receptacle. PUR drag-chain jacket, 1 m to 30 m.

Specification table

A harness is not picked from a catalog; it is built to your drawing, BOM or sample. What matters is how the branch points are made, how each joint is protected and what evidence ships with the assembly. Workmanship runs to IPC/WHMA-A-620 Class 3 criteria, and every unit is tested before it leaves.

Typical custom wire harness build options. Every assembly is made to order, so values outside this table are quoted rather than declined.
ParameterStandard buildAvailable on request
Build inputDrawing, BOM or physical sampleReverse-engineered samples with a build report
Connector typesMIL-DTL-38999, Micro-D and Nano-D, D-Sub, M12D38999 series I/II/III, custom shells
Conductor range32 to 10 AWG single or multi-branchBusbar and screened HV branches
ProtectionBraided sleeving and heat shrink transitionsConduit, potted breakouts, molded strain relief
Breakout geometrySingle point to multi-branch with marked lengthsClocked plugs so each branch falls into place
WorkmanshipIPC/WHMA-A-620 Class 3 criteriaNadcap-style or customer documentation packages on request
Testing100 percent continuity and hipotInsulation resistance, HVIL checks, functional test racks
VolumePrototype through repeat productionPilot builds before tooling commitment
MaterialsRoHS and REACH compliant as standardUL style recognition, rail fire/smoke/toxicity grades

Workmanship is built to IPC/WHMA-A-620 Class 3 criteria, published by IPC and WHMA; rail builds follow the fire, smoke and toxicity grades referenced in EN 45545-2.

Typical applications

  1. Rail rolling stock EN 45545-2 graded materials and documented fire performance.
  2. Aerospace and defense MIL-DTL-38999 based looms with tight potting and marking requirements.
  3. Medical devices Surgical robotics and cleanroom-rated assemblies with full traceability.
  4. Energy storage High-voltage battery and BESS harnesses with HVIL monitoring circuits.
  5. Semiconductor equipment EFEM, vacuum and wafer-handling cabling.

Related reading

Questions buyers ask

What do I need to send to get a quote?

A drawing or sample plus the connector part numbers, wire specifications and branch lengths. If you do not have a harness drawing yet, our drawing checklist for OEM buyers lists exactly what the build team asks for.

Is there a minimum order quantity?

Prototypes and samples start from 1 to 50 pcs. Production pricing starts at 500 pcs per part number once the assembly is proven and a tooling or fixture investment makes sense, and we say so in writing before recommending it.

Is MIL-DTL-38999 worth the cost over M12?

Usually not for a factory floor sensor. It earns its price in vibration, altitude and environmental sealing cases. We priced the difference in MIL-DTL-38999 versus M12.

Have one built to your drawing

Send the connector part numbers, lengths and environment. We review manufacturability in writing before any tooling spend, and we tell you up front what we cannot do.
