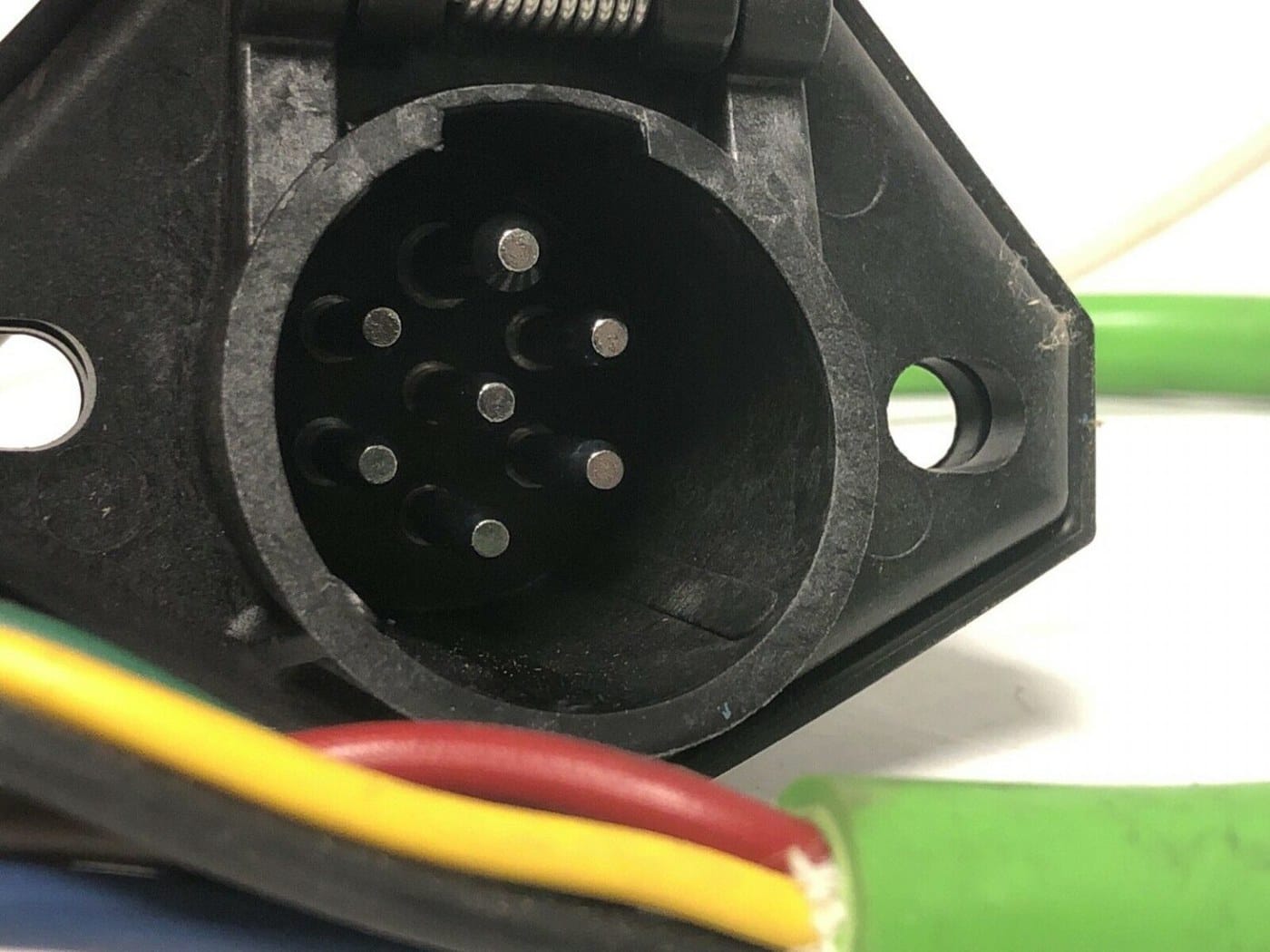

J560 Trailer ABS Harness T for Tractor-Trailer Diagnostics
A j560 trailer abs harness sits in the seven-way tractor line and brings the ABS circuits out to a diagnostic connector, so you can read and clear trailer fault codes with the umbilical connected. 0.6 m straight or coiled, 12 V or 24 V.
Last updated: 13 September 2026
Overview
A j560 trailer abs harness sits in the seven-way line between tractor and trailer and brings the ABS circuits out to a diagnostic connector. The tractor stays coupled, the air lines stay charged and the trailer ECU stays powered, which is exactly what you need when a fault only appears under load or with the suspension at ride height. Unplugging the umbilical to reach the trailer port tends to clear the very condition you are trying to capture.
Key Specifications
| Connector A | J560 7-way male plug and female socket in a T body |
|---|---|
| Connector B | 9-pin connector, OBD-II socket, or bare flying leads |
| Cable length | 0.6 m straight or coiled heavy-duty section |
| System voltage | 12 V / 24 V nominal |
| Junction | Molded strain-relief body at the branch point |
| Application | Trailer ABS / EBS fault reading with the umbilical connected |
| Options | Straight or coiled build, protective caps, custom branch connector |
The seven-way pinout you are tapping
The SAE J560 connector is the standard seven-way interface between tractor and trailer in North America, and the assignment below is the published one. Pin 7 is the circuit that matters here: it is the auxiliary feed to the trailer ABS ECU, and it is the reason that ECU can be powered and read while the umbilical is made up.
| Pin | Published function | Typical wire color |
|---|---|---|
| 1 | Ground return | White |
| 2 | Clearance, marker and identification lamps | Black |
| 3 | Left turn and hazard | Yellow |
| 4 | Stop lamps | Red |
| 5 | Right turn and hazard | Green |
| 6 | Tail and marker lamps | Brown |
| 7 | ABS / auxiliary power | Blue |
Colors are the common convention, not a guarantee — older trailers and re-wired nose boxes deviate regularly. We build the branch to the pin list you send rather than to the color chart.
Why the trailer has to stay connected
Trailer ABS faults are intermittent by nature. A sensor air gap that opens only at ride height, a power feed that drops when the suspension articulates, a modulator valve that misbehaves once the gladhands are charged — none of these are present on a trailer standing disconnected in the yard. Reading through the seven-way line keeps the electrical and pneumatic conditions that produce the fault, which is the difference between clearing a code and finding a cause.
What to check at the mating faces
A T-harness adds two contact sets to a circuit that already has plenty, and any resistance there presents as a lamp or ABS fault rather than as a bad adapter.
| Symptom | Likely cause | What to do |
|---|---|---|
| Trailer lamps flicker with the adapter in line | High resistance at pin 1 or pin 6 | Clean both faces, check for spread sockets |
| ABS lamp on only with the T fitted | Pin 7 contact not seating, or a bent pin | Inspect pin 7 specifically, reseat until the latch engages |
| Tool powers up but will not talk | Wrong branch connector for your tester | Confirm 9-pin, OBD-II or bare lead before ordering |
| Intermittent faults in wet weather | Water in the socket with the cap missing | Cap both connectors when the adapter is stowed |
Handling and stowage
- Inspect both mating faces for corrosion and bent pins before coupling.
- Seat the plug until the latch engages, then support the branch so its weight does not hang on the tractor socket.
- Keep the branch clear of the fifth-wheel grease path, the gladhand area and the suspension travel envelope.
- Coil the slack rather than letting it trail, and cap the connectors when the adapter is not in use. Road wash and grit in a seven-way socket is the most common cause of intermittent trailer faults.
Build options
The branch can terminate in a 9-pin connector, an OBD-II socket, or bare flying leads for a customer-mounted box. Straight 0.6 m suits yard work where the tractor and trailer sit close; the coiled heavy-duty section pulls back off the deck and suits roadside or gate checks. Nose and socket follow the J560 interface, so the coupler latches as it does without the adapter in line.
Typical applications for this j560 trailer abs harness
- Reading and clearing trailer ABS and EBS fault codes in the yard with the umbilical made up
- Pre-trip inspection lanes where the trailer must stay connected throughout the check
- Checking trailer-side lamp and ABS circuits before a road test, alongside our M12 power T-code or L-code DC power cable on the tractor-side harness
- Training and demonstration work where a live trailer beats a bench rig
- Fleet diagnostic days, paired with our M12 ISOBUS Lite cable for tractor to implement CAN for implement-side work
What to confirm before ordering
- Which branch connector your tool reads the trailer through: 9-pin, OBD-II, or bare leads.
- 12 V or 24 V trailer system.
- Straight or coiled build, and the working length you need at the nose of the trailer.
- Whether the trailer uses a non-standard pin 7 arrangement.
- Any sealing requirement at the molded junction, which we quote only against a test report.
Workmanship and testing
Cable assemblies here are built to IPC/WHMA-A-620 Class 3 workmanship inside an ISO 9001 system, across a 32 to 12 AWG range. Continuity and pinout are verified on every unit before packing. Seal checking on the batch can be quoted when an ingress rating is specified.
Custom builds and ordering
A prototype lot of 5 pcs ships in 3 working days; series orders start at 500 pcs and ship 14 working days after sample approval. We hold 100 sets of mold tooling in house, so a standard body needs no tooling time and a new one adds about 10 working days. OEM and ODM builds go out under your part number and label, with material certificates and first-article reports on request.
Related heavy-vehicle leads
- Black 9-pin J1939 Type 1 adapter to OBD2 16-pin diagnostic socket

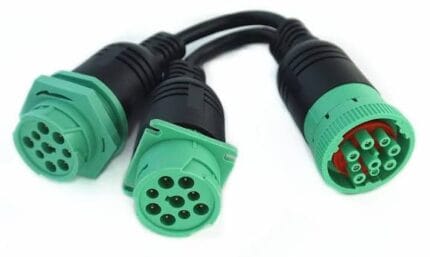

- J1939 9-pin Y splitter cable for ELD and GPS trackers
- DT06 to J1939 adapter cable for tractors and excavators
- M12 ISOBUS Lite cable for tractor to implement CAN
- M12 CAN bus cable, 5-pin shielded pair for CANopen and DeviceNet
Full range: automotive cable and wire harness assemblies.
Frequently Asked Questions
Can I read trailer codes without a T-harness?
Yes, by unplugging the umbilical and connecting directly to the trailer port — but that removes the conditions that cause many intermittent faults, so the code often clears and comes back on the road.
Does the adapter carry the lamp circuits too?
The T body passes the full seven-way line through, so lamps and ABS power continue to behave as they do without the adapter in line.
Which branch connector should I choose?
Match it to your tester. If you are not sure, order bare flying leads and terminate to your own box, or send us the tool model and we will confirm.
Is the junction sealed?
The molded branch body is strain-relieved and built for yard use. Any ingress rating is quoted only against a test report on the production batch, not assumed.
