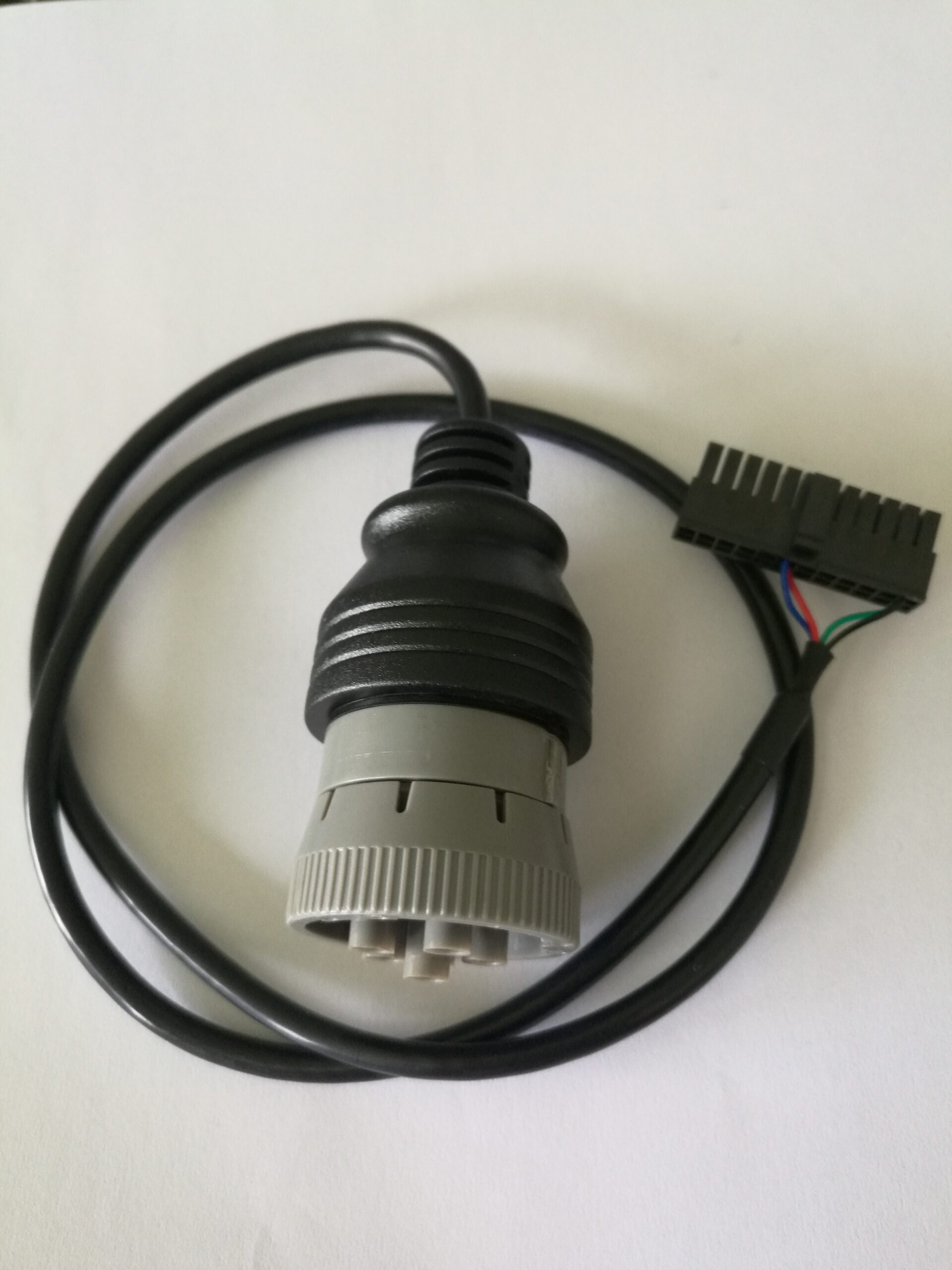

Deutsch DT 6-Pin Heavy-Duty Diagnostic Cable Assembly

Overview

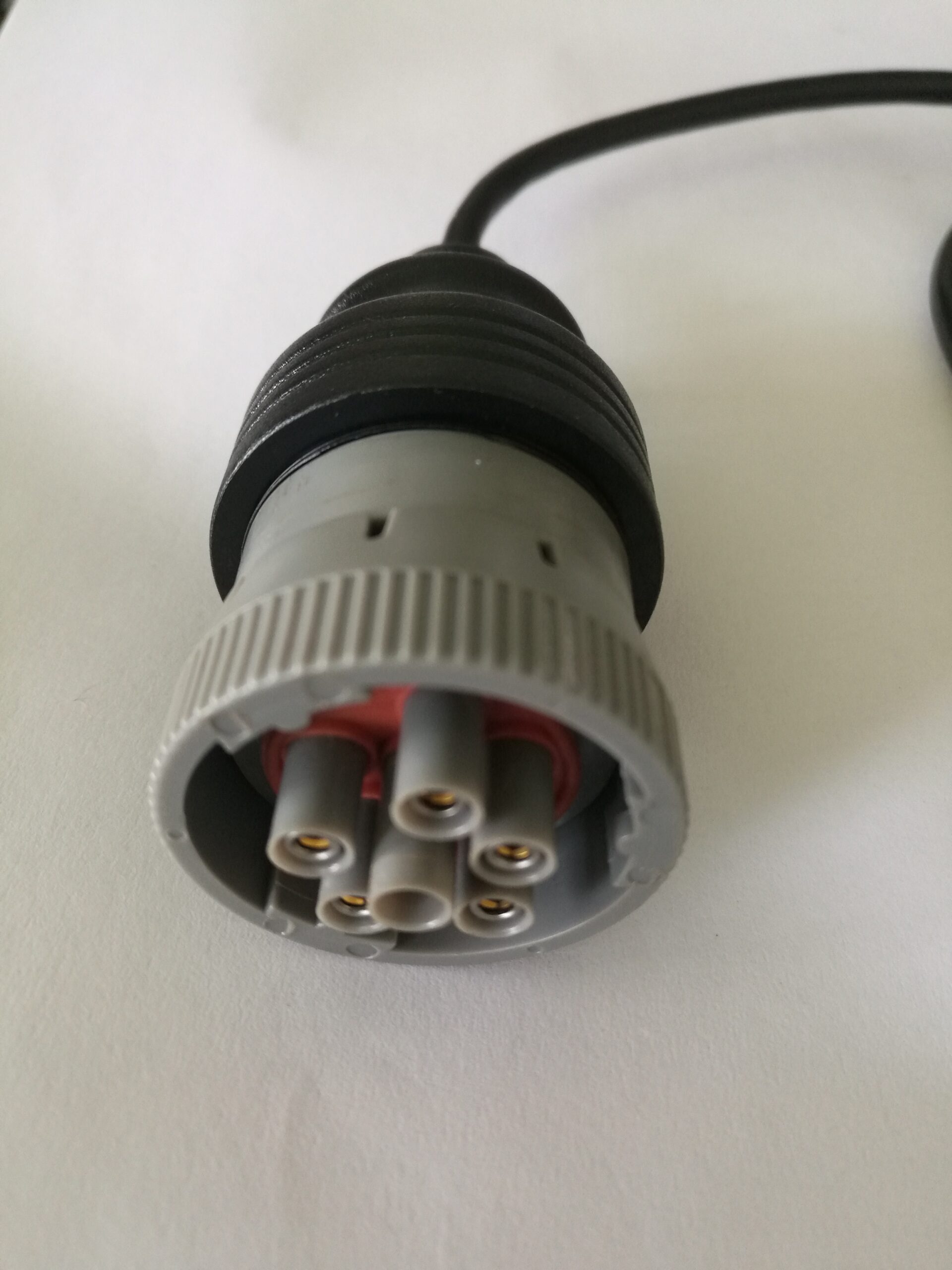

A deutsch dt 6 pin cable lives outside the cab. It is the lead you use when the diagnostic port sits on the chassis or in the engine compartment of a truck, a harvester or an excavator, where it sees wash-down, road spray, dust and vibration that no passenger car connector is asked to survive. The DT shell couples with a bayonet action that locks with a quarter turn, so vibration does not walk the plug out the way a friction-fit body can, and sealed variants carry grommets at the rear of the shell where the individual wires leave. We build to the pinout, jacket and length on your drawing. Deutsch is a trademark of its owner; we supply compatible components and are not an authorized distributor.

Key Specifications

DT, DTM or DTP: pick the family before you pick the pin count

The DT name covers a family rather than a single part, and the three members you will meet on a machine harness differ mainly in contact size and therefore in wire range. Getting this wrong is the most common reason an otherwise correct lead will not mate or will not carry the current. Treat the values below as the industry-standard definitions of the family and confirm them against the shell you are replacing.

What actually kills a diagnostic lead on a machine

Passenger car cables fail at the strain relief. Machine cables fail everywhere, because they are asked to do a harder job: they hang off a port on a vehicle that shakes, gets washed and works in dust. Each failure mode below has a construction answer, and naming the answer on the order is cheaper than replacing the lead twice.

Reading the port before you order

1. Count the cavities and photograph the face of the receptacle. Six cavities with one arrangement is not the same part as six with another.
2. Note the insert key and the shell size. DT shells of the same pin count will not couple when the keying differs.
3. Decide DT, DTM or DTP by the wire you are terminating and the current the circuit carries.
4. Look at what the lead will rub against and where it will be clamped.
5. Confirm whether the machine uses the round 9-pin diagnostic port as well, because a lot of fleets run both, and the SAE J1939 assignment on that port is not the same as the one on the DT shell.

Construction

• DT series shells with bayonet coupling, keyed to the receptacle you nominate.
• Contacts crimped on the conductor and retained by the wedge lock for the series.
• Stranded copper conductors; cross section and count stated on your drawing.
• Sealed variants with rear grommets and sealing plugs in unused cavities.
• Overmolded strain relief at the backshell exit, and a jacket chosen for oil, fuel and weather.

Typical applications for this deutsch dt 6 pin cable

• Truck engine harnesses where the service port sits on the chassis rail
• Agricultural machinery that gets pressure-washed between jobs, alongside a DT06 to J1939 adapter cable
• Construction plant working in dust and mud, next to a DT connector pigtail harness
• Workshops bringing a machine port out to a handheld scanner, paired with the SAE J1939 OBD2 diagnostic cable
• Fleet service vans that carry one lead for the whole parc, with a J1939 9-pin Y splitter in the same kit

Workmanship and testing

IPC/WHMA-A-620 Class 3 is the workmanship bar for Deutsch DT 6-Pin Heavy-Duty builds, and ISO 9001 is the system behind the line, from 32 to 12 AWG. No Deutsch assembly is boxed before 100% continuity and pinout are confirmed, and seal checking is quoted whenever an ingress rating is on the drawing.

Every production run can ship with RoHS and REACH declarations and the electrical report agreed at quotation; see certifications and material declarations. UL styles and other named approvals are built to drawing: we source to the style you specify and document it, rather than asserting a listing we do not hold. Termination, molding and verification happen in-house see the assembly lines behind this build so the process that made your sample is the process that runs the order. More background: what changes on vehicle harness builds. Tooling is quoted separately, cut in-house rather than brokered out, and owned by you.

Custom builds and ordering

Five pieces is the prototype minimum for Deutsch DT 6-Pin Heavy-Duty builds, shipping in 3 working days; the production minimum is 500 pcs, delivered 14 working days after approval. Tooling not already held adds around 10 working days. Deutsch orders ship as OEM or ODM under your part number and labeling material certificates with first-article reports are available.

Related heavy-duty leads

• DT Connector Pigtail Harness, 2 / 3 / 4-Pin Sealed
• DT06 to J1939 Adapter Cable for Tractors and Excavators
• SAE J1939 OBD2 Diagnostic Cable, Type 2 Green 9-Pin
• J1939 9-Pin Y Splitter Cable for ELD and GPS Trackers
• OBD2 Type B Cable for Medium-Duty Truck Fleets
