DC Waterproof Push-Pull Quick-Lock Cable

This dc push pull quick lock cable pairs a waterproof latched coupling with quick, one-hand DC mating: press the shells together, the lock engages, and the sealed joint shrugs off rain, washdown splash and dust on outdoor power runs.

Category: Tag:
Description

Overview

This dc push pull quick lock cable pairs a waterproof latched coupling with quick, one-hand DC mating: press the shells together, the lock engages, and the sealed joint shrugs off rain, washdown splash and dust on outdoor power runs.

Standard DC barrel connections rely on friction, and the first cable tug on a pole or gate finds that out. This quick-lock version latches positively and seals at the same time, so outdoor LED signage, gate cameras and battery feeds keep their connection through weather and vibration while still coming apart with one hand for service.

Key Specifications

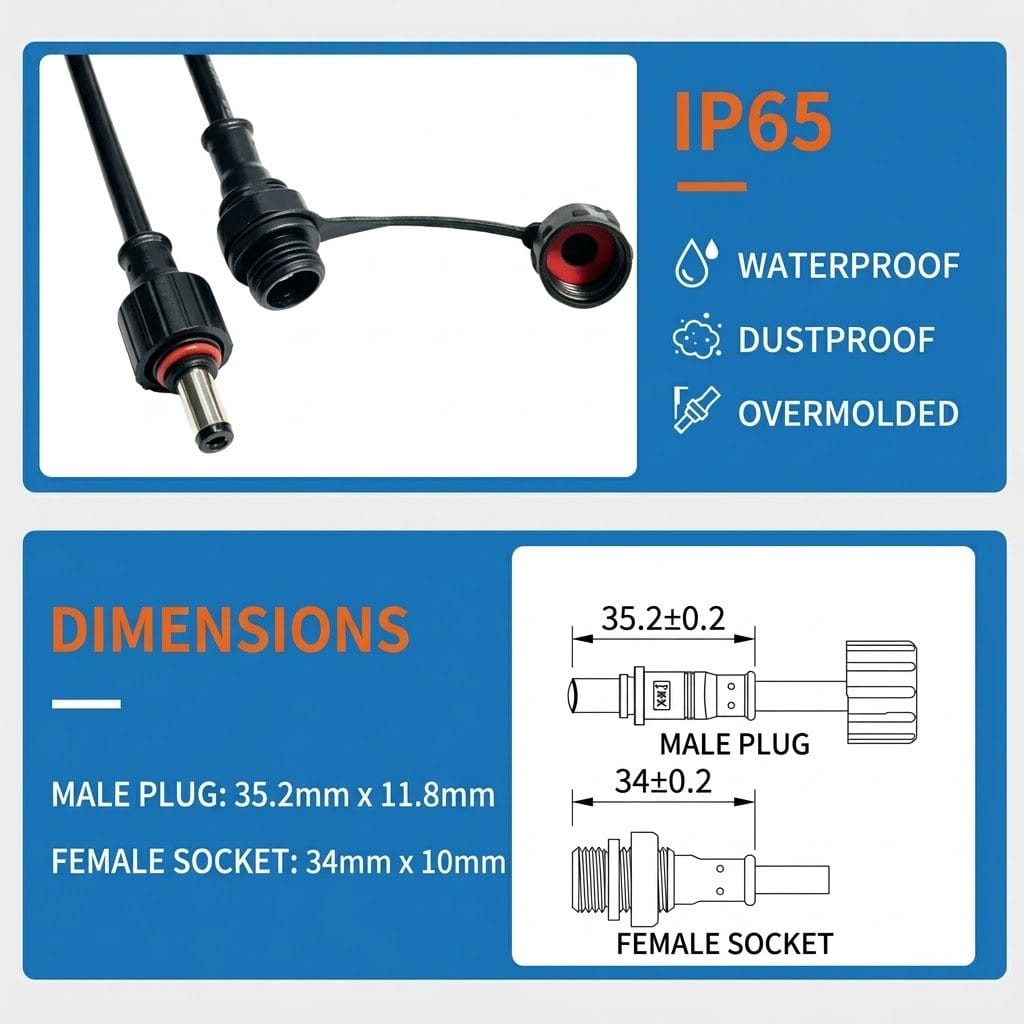

The table below lists the configuration shown in the product photo.

Construction and Materials

Both ends are overmolded with the latch mechanism fully enclosed, and the sealing interface keeps moisture out of the contact area while mated. The round jacket is flexible for routing along frames and poles, and the polarized shells prevent reversed polarity at the connection point.

Typical Applications

Deploy it on outdoor LED strip and signage power, gate and barrier camera feeds, e-bike and cart battery connections, irrigation controls and any low-voltage DC run exposed to weather where a screw-on cap would slow every service visit.

Compatibility and Fitment

The coupling mates only with matching quick-lock counterparts; confirm the connector family on your device or pair it with our matching counterparts ordered together. Pin count and current rating are matched to your specification at order time.

Custom Builds and Ordering

Pin count, cable gauge, length and gender arrangement are produced to order. Share the load requirements and we will quote the assembly.

Packaging and Shipping

Individually bagged with contact protection; OEM labeling and bulk packs are available.

Quality and Compliance

Every assembly is continuity and polarity tested before packing, and the seal interface is inspected for full engagement. See the IEC 60529 IP code for the governing interface specification.

Related Cable Ranges

Browse the related ranges: DC Plug Power Cables Circular M-Series Cable Assemblies Screw-Lock Molded Cable.

Additional information
ConnectorDC waterproof quick-lock connector
LockingPush-pull quick lock, tool-free
SealingWaterproof sealed when mated
ApplicationOutdoor LED, cameras, battery feeds
StyleMale / female overmolded pair
ConfigurationPin count and rating to specification
