Built to order · 28 assemblies
Ethernet Patch Cords and Industrial Network Cables

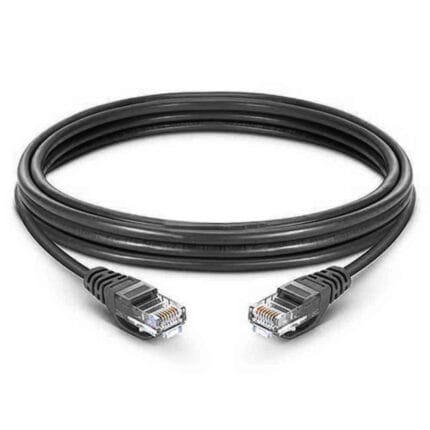

Copper patch leads from Cat5e to Cat8 in UTP, S/FTP and high-flex PUR, with industrial variants using M12 X-coded, ix Industrial and 10BASE-T1L single pair endpoints. Category, shielding, jacket and boot style are set per order.
- Category
- Cat5e · Cat6 · Cat6A · Cat8
- Shielding
- UTP · S/FTP · F/FTP
- Industrial
- M12 X-code · ix Industrial
- Single pair
- 10BASE-T1L · T1 / M8
- Jacket
- PVC · PUR · LSZH · gel-filled
- Rating
- IP67 · IP68 · IP69K
- Conductor
- 22 – 28 AWG
- Length
- 0.3 m – 30 m
Specification table
Patch cords look interchangeable until the environment changes the requirement: office cabinet work needs flexible stranded conductors, industrial runs need PUR or LSZH jackets and locking plugs, and anything single pair needs its own budget. We build all three from the same drawing discipline.
| Parameter | Standard build | Available on request |
|---|---|---|
| Category | Cat5e, Cat6, Cat6A, Cat8 | Cat6A S/FTP for 10GBASE-T over full distance |
| Conductor | 22-28 AWG stranded for patch use | Solid conductor where the run is punched down |
| Shielding | UTP (office), F/UTP (noisy mixed runs) | S/FTP with individually shielded pairs |
| Industrial | M12 X-coded and ix Industrial | RJ45 with IP67 bayonet protection |
| Single pair | 10BASE-T1L and T1 / M8 builds | SPE bulkhead versions |
| Jacket | PVC, LSZH, PUR | Gel-filled for direct burial, CM/CMR ratings |
| Rating | IP67 mated where the hardware is sealed | IP68 and IP69K with the matching receptacle |
| Length | 0.3 m to 30 m | Harnesses with multiple labeled drops |
| Standards | ISO/IEC 11801 and TIA-568 channel classes | Channel versus permanent link clarification |
Cabling channel performance follows ISO/IEC 11801; M12 connectors remain built to IEC 61076-2-101.
Typical applications
- Data center and office cabinets Short, flexible, correctly terminated cords that do not drag their neighbors.
- Industrial Ethernet M12 X-coded and ix Industrial runs built for vibration and coolant.
- Machine vision Cat6A lines feeding GigE Vision cameras on moving equipment.
- Touring and broadcast Ruggedized cords that survive repeated set and strike.
- Building networks LSZH and CMR rated riser runs.
Related reading
- Cat5e vs Cat6 vs Cat6ABandwidth, construction and how far each category really goes before the link degrades.
- Single Pair Ethernet vs Four-Pair EthernetWhere SPE replaces four-pair runs and where it does not, with real distance and power numbers.
- RJ45 vs M12 X-CodedVibration, sealing and mating cycles compared for machines that see washdown or constant motion.
Questions buyers ask
Cat5e, Cat6 or Cat6A?
Cat5e is fine for gigabit at short reach. Cat6 buys headroom against alien crosstalk in dense bundles, and Cat6A is the realistic choice for 10GBASE-T over 100 m. Our patch cord comparison puts numbers on each step.
When is single pair Ethernet the better answer?
When a sensor node needs power and a modest data rate over a longer distance on thinner cable. It trades throughput for reach and weight. See SPE versus four-pair Ethernet.
RJ45 or M12 X-coded on the machine?
If the equipment is cleaned, moved or vibrated, M12 X-coded is the connector engineers specify, and we build both plus the adapter leads between them. Details in this comparison.
Have one built to your drawing
Send the connector part numbers, lengths and environment. We review manufacturability in writing before any tooling spend, and we tell you up front what we cannot do.
