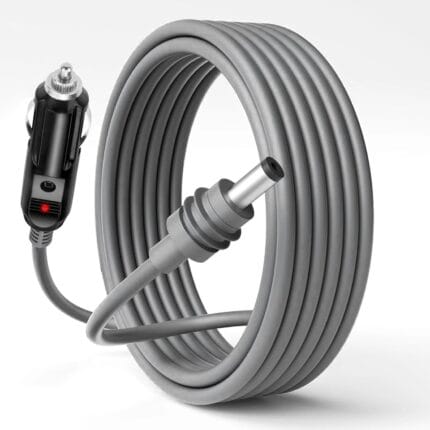

DC Plug and Barrel Power Cables
DC power leads built around 5.5 × 2.1 mm and 5.5 × 2.5 mm barrel plugs, plus 4017, 3513, XT60 and Anderson options, with USB-C PD up to 240 W and fused multi-way splitters. Gauge, jacket, fuse rating and plug polarity are set per order.
- Barrel plug
- 5521 · 5525 · 4017 · 3513
- High current
- XT60 · XT90-S · SB50
- USB-C PD
- Up to 240 W (PD 3.1 EPR)
- Wire gauge
- 24 – 14 AWG
- Jacket
- PVC · silicone · braided
- Protection
- Inline fuse · low-voltage cutoff
- Sealing
- IP67 on request
- Length
- 0.2 m – 5 m
Threaded Locking DC Pigtail 5.5×2.1mm, Shielded Right-Angle Plug to Bare Wire
A threaded locking dc pigtail for equipment that vibrates: a 5.5x2.1mm right-angle plug with a knurled threaded collar, shielded cable with a drain wire, and tinned tails. The collar screws onto a matching socket, so retention no longer depends on friction. 2.00 m standard, with the cable exit clocked to your run.
Specification table
DC leads are where a small specification error becomes a field failure: the wrong barrel size, reversed polarity or a conductor too thin for the run length. We build to the plug dimension you name, state the polarity on every drawing, and size the conductor against the current and the distance.
| Parameter | Standard build | Available on request |
|---|---|---|
| Barrel plug | 5.5 x 2.1 mm, 5.5 x 2.5 mm, 4.0 x 1.7 mm, 3.5 x 1.35 mm | Any barrel size or straight plug to a sample |
| Polarity | Center-positive unless stated otherwise | Center-negative, documented on the drawing and the label |
| Wire gauge | 24 to 14 AWG stranded copper | 12 AWG for high current leads |
| Current | Sized from the load current and the run length | Derating curves supplied with the quote |
| Jacket | PVC (general purpose), silicone (high temperature) | Braided sleeve, coil cord, direct burial compounds |
| Protection | Inline fuse holder | Low-voltage cutoff modules, reverse polarity protection |
| Sealing | IP67 assemblies for outdoor equipment | Overmolded strain relief with a sealing grommet |
| Length | 0.2 m to 5 m as standard | Any length; voltage drop checked before quoting |
| Termination | Barrel plug to stripped and tinned leads | Second connector, spade terminals, ferrules |
| Compliance | RoHS and REACH materials | UL styles and ampacity documentation |
Barrel dimensions follow IEC 60130; conductor ampacity is worked to the installation rules in NFPA 70 where North American installations require it.
Typical applications
- Security cameras and access control Outdoor runs where the lead has to seal at the camera housing.
- LED lighting and signage Constant-voltage feeds with the right barrel plug and current rating.
- Solar and battery packs Higher current leads with XT60, XT90-S or SB50 hardware.
- Medical and lab devices Documented materials and repeatable lot-to-lot consistency.
- Point-of-sale and kiosks Short harnesses with labeled branch lengths.
