Overmolded Screw-Lock cable Connector vs Latch-style cable connector

When comparing an overmolded screw-lock cable connector with a latch-style cable connector, the key difference is not only the locking method, but also mechanical protection, cable strain relief, environmental durability, and serviceability.

1. Overmolded Screw-Lock Cable Connector
Construction
An overmolded screw-lock cable assembly typically combines:
Internal connector insert
Metal locking screws or threaded hardware
Shielding structure
Cable jacket
Injection-molded strain relief
The cable and connector become a single protected assembly.

Advantages
1. Superior Mechanical Protection
The overmolded body protects:
Solder joints
PCB contacts
Cable termination points
Shield connections
This is important because the cable failure point is often not the connector itself, but the transition area between:
Cable → Connector Housing
Overmolding reduces:
Cable bending stress
Pull-out damage
Repeated flex failures

2. Excellent Vibration Resistance
The screw-lock mechanism prevents connector separation caused by:
Machine vibration
Motor movement
Shock loading
Cable movement
Typical applications:
CNC machines
Industrial robots
Vision inspection systems
Factory automation equipment

3. Better Industrial Reliability
An overmolded screw-lock cable is usually preferred for equipment that must operate continuously.
Examples:
24/7 production lines
Industrial PCs
Embedded controllers
Measurement equipment

4. Better Environmental Protection
Depending on design, overmolding can improve resistance against:
Dust
Oil mist
Moisture
Industrial contaminants
A latch connector with exposed moving parts may be more vulnerable.

Disadvantages
1. Slower Installation
Installation requires:
Insert connector
Align locking screws
Tighten screws
This adds assembly time.

2. Lower Service Convenience
For equipment requiring frequent cable replacement, screw-lock can be inconvenient.

3. Higher Cost
Additional manufacturing processes:
Precision molding
Locking hardware
Assembly steps
increase cost.

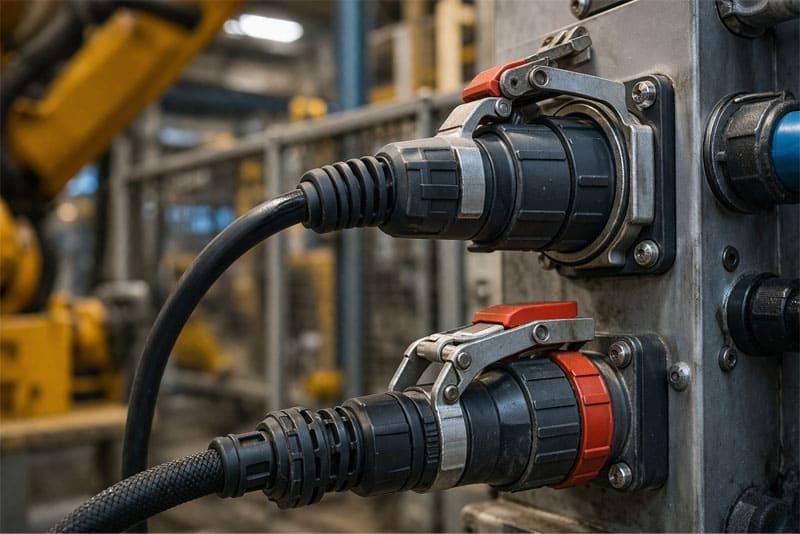

2. Latch Cable Connector
Construction
A latch connector uses:
Spring clip
Locking tab
Push-release mechanism
Common examples:
RJ45 Ethernet connectors
Standard USB connectors
Many consumer cable assemblies

Advantages
1. Fast Connection
Benefits:
Tool-free installation
Quick replacement
Easy troubleshooting
Ideal for:
Test equipment
Development systems
Service environments

2. High Plug/Unplug Cycle Capability
Latch connectors are suitable when operators frequently:
Connect cables
Disconnect equipment
Change configurations

3. Lower Cost
Advantages for high-volume products:
Simple design
Faster assembly
Lower manufacturing cost

Disadvantages
1. Lower Mechanical Retention
A latch relies on a spring mechanism.
It can release due to:
Cable pulling
Side force
Strong vibration
Operator impact

2. Connector Body Protection Depends on Housing
A normal latch connector often has:
Plastic shell
Limited strain relief
Exposed locking mechanism
It may not survive harsh industrial environments as well as overmolded versions.



For Industrial USB 3.0 Cable Products
For a USB 3.0 Type-A Male to Female Extension Cable, the positioning difference is:
Overmolded Screw-Lock Version
Target customers:
OEM machine builders
Automation integrators
Industrial equipment manufacturers
Marketing message:
“Heavy-duty industrial USB cable engineered for secure, vibration-resistant data transmission in demanding environments.”

Latch Version
Target customers:
General IT users
Office equipment
Temporary installations
Marketing message:
“Easy-install USB extension cable with quick-release connector design.”

Engineering Recommendation
For B2B industrial applications, the preferred hierarchy is:
1. Overmolded Screw-Lock Connector
★★★★★ Best reliability
2. Metal Housing Screw-Lock Connector
★★★★☆ Good industrial option
3. Latch Connector with Overmold Strain Relief
★★★☆☆ Good general industrial use
4. Standard Plastic Latch Connector
★★☆☆☆ Consumer/light-duty use
