M9 Sensor Cordset for Handheld and Medical Instruments

Overview

An M9 sensor cordset is the locking connector of choice for equipment an operator holds: patient monitors, portable gas analyzers, handheld GPS and lab modules. A 9 mm thread with two to eight contacts carries 125 V and up to 4 A in a shell an M12 cannot fit into.

Built for the Way Handheld Instruments Fail

A corded instrument does not die from water, it dies from its own cable. The lead gets wrapped around the device two hundred times a month, tugged at the strain relief, and stuffed into a case still warm from use. M9 answers with a screw coupling that never shakes loose in a bag, a metal or reinforced shell that survives being set down on concrete, and a cable exit whose strain relief is molded in one piece with the connector rather than clamped on afterwards.

Electrical Headroom Between M8 and M12

This size is deliberately placed in the family. It takes roughly an M12-class 125 V rating and up to 4 A on the two- and three-pin builds – double what small M8 arrangements typically carry – while staying small enough for bezels and thin handheld panels. Four- and five-pin versions carry 3 A; seven- and eight-pin shielded builds carry 1 A per contact, which is the regime of real sensor and data work. Cable outer diameters run 3.5 to 5.0 mm on 24 AWG conductors.

Applications for This M9 Sensor Cordset

The center of gravity is portable medical and diagnostics: patient monitors, handheld vital-sign and ultrasound probes, portable gas and water analyzers, and modular bench instruments where the probe lead must lock. Around that core sit handheld GNSS and survey terminals, drone and gimbal payload links, small HVAC refrigerant sensors, and wearable or body-worn industrial devices. Sealed IP67 builds cover the units that get wiped down, rained on or carried between sites.

Choosing Straight, Angled and Shielded Versions

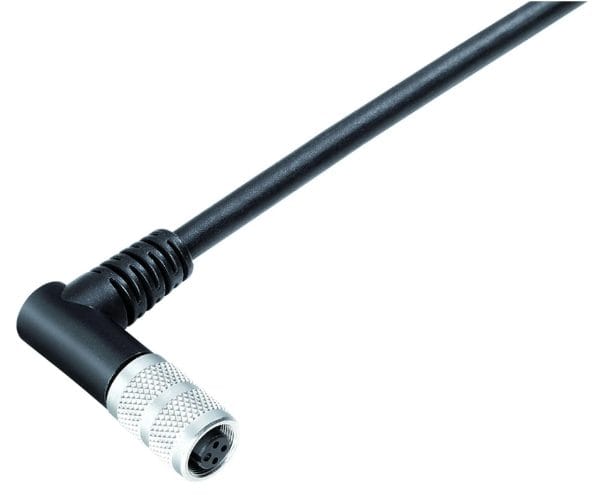

Straight exits suit devices where the accessory hangs downward from a top panel; right-angle exits suit side-mounted jacks where a straight plug doubles the grip depth. If the lead carries millivolt-level signals near switching supplies – typical for medical probes – order the 360-degree shielded version, where the braid lands on the shell itself instead of a pigtail that quietly becomes an antenna.

Shell and Housing Options

Nickel-plated brass is the default where the shell doubles as the shield return or takes knocks; engineering plastic wins on weight, cost and electrical isolation for bench-class instruments. Both share the same inserts and gasket set, so a build can move between housings without redesigning the panel cutout – useful when a portable product gains a sealed outdoor variant mid-life.

Ordering and Custom Builds

Specify contact count, shielding, housing material, jacket compound, length and end treatment – stripped and tinned, ferrules, or a terminated far-end connector. Mixed orders are normal in this category: one part code with suffixes covering sealed and unsealed, straight and angled. Field-attachable plugs are available for service kits.

How Each Cordset Is Verified

Continuity and insulation resistance are checked on every unit; sealed builds are leak tested. Mating is gauged so plugs and receptacles from different batches still seat by hand. Salt-spray exposure, RoHS and REACH declarations and full test reports ship with each batch, and we will build to a named approval if you state it before quoting.
