VGA HD15 Video Cable 1.5m

Overview

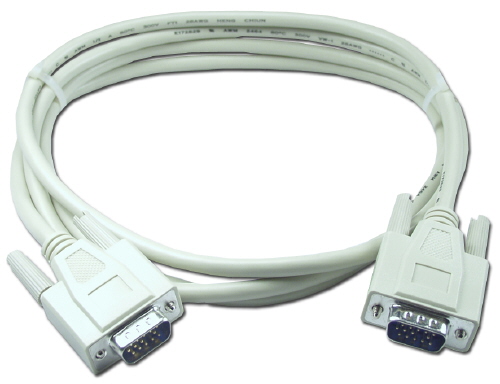

This vga hd15 video cable is the 1.5 m off-the-shelf length with
cream, off-white connector housings, built for fixed installations rather than for a desk drawer. The
color is not cosmetic. Older offices, classrooms and church halls were cabled in cream and off-white,
and a black cable running down a cream wall to a ceiling projector is the first thing anyone sees in
the room. At 1.5 m the run is also well inside the range where analog RGBHV behaves itself, which is
why this length is the one worth holding in stock: it is long enough for desk-to-floor-box and
projector drop work, and short enough that nobody has to think about signal loss.

Key Specifications

Why 1.5 m, and when it is the wrong length

A fixed install fails in one of two ways: the cable is too short and somebody adds a gender changer
plus a second cable, or it is far too long and the excess gets coiled inside a ceiling void next to
mains. Both are worse than ordering the right length. Use this table to decide before you buy.

One more thing is worth knowing before you choose a length: analog video degrades gradually rather
than suddenly, so a run that is slightly too long is still watchable, just soft, and the fault gets
blamed on the display. The
Video
Graphics Array interface keeps the color channels and the sync on separate pins, which is exactly
why the picture loses fine detail before it loses anything else.

Reading the jacket marking before you pull it

The jacket on this build carries a printed AWM 2464 style marking with a temperature and voltage
rating, which is the marking you want on anything that goes into a plenum-adjacent void, an office
partition or a ceiling. Two practical points. First, printed markings are the only way an inspector or
a maintenance contractor can identify a cable two years later, so do not accept a plain jacket for
fixed work just to save a small amount. Second, the marking on a custom run is whatever your
specification calls for, so state it on the drawing rather than assuming the stock legend carries
over.

Install practice that saves a call-out

Analog video rewards tidy work. Label both ends with the source and the destination before the
ceiling tile goes back, because a cream cable in a cream ceiling cannot be traced afterwards. Leave a
service loop at the display end rather than at the source, so a future swap can be made without
re-pulling the run. Keep the cable away from mains and from lighting dimmers, and never staple through
it: a flat spot pressed into a coaxial core is a permanent reflection point. Where the run passes sharp
sheet metal, fit a grommet, since the jacket is the only thing between the core and that edge.

Test before you close up, too. A picture that looks acceptable on a wall of large text may be
losing exactly the fine detail a spreadsheet grid needs, and that is the moment to find out rather
than after the contractor has left the site.

Light jacket, and the trade you are making

Off-white PVC hides against cream walls, ceiling tiles and beige PC cases, and it makes a run
visible enough to be traced during service, which installers generally like. The trade is that light
PVC shows scuff marks and handling dirt more than black does, so it is a poor choice for a cable that
gets coiled and thrown in a case every day. For portable and rental stock, order the same build in
black; for anything fixed, the light jacket is the right call. Jacket color is a build option on every
length we make, including on the
mixed-contact D-sub assemblies
that turn up on older workstation graphics.

Typical applications for this vga hd15 video cable

• PC to monitor on a desk where the cable should disappear against the wall
• Short fixed runs inside office partitions and service voids
• Classroom and meeting-room projectors with a cream ceiling tile grid
• Replacement stock for facilities teams maintaining a building that was cabled in the 2000s
• Control desks that still run analog alongside
  a modern service
  interface on newer cabinets

Measure the run, then order

1. Measure the route, not the straight-line distance: around the desk leg, up the
   wall, along the tray.
2. Add service slack at both ends, roughly 150 mm per end, and no more.
3. Decide the color — cream for fixed and visible, black for portable.
4. Confirm the pinout if the display depends on reading EDID over the DDC pair.
5. State the jacket marking you need printed, if the install is inspected.

VGA HD15 Video Cable builds are assembled and inspected to IPC/WHMA-A-620 Class 3 criteria, with ISO 9001 as the quality system over 32 to 12 AWG work. continuity and pinout are verified on each VGA assembly before packing, and seal checking is quoted whenever an ingress rating is on the drawing.

Custom builds and ordering

VGA HD15 Video Cable prototype builds start from 1 to 50 pcs and are out in 3 working days; production is quoted from 500 pcs at 14 working days after sample approval. Your part number and labeling go on OEM and ODM VGA shipments, and material certificates with first-article reports are available. We hold 100 sets of mold tooling in house, so a standard body needs no tooling time and a new one adds about 10 working days.

Material declarations against RoHS and REACH are issued per project, alongside the dimensional and electrical reports agreed at quotation; see certifications, compliance and material declarations. Where your drawing names a UL style or another approval, the build follows your drawing and ships with the supporting document rather than a claim of our own. The strain relief and molded body are produced on tooling we cut ourselves see the overmold tooling we build in-house so the tool is quoted separately, owned by you, and available for repeat runs years later. More background: our broadcast and pro AV work.
