Reversible USB-A to USB-A Cable, USB 2.0

A reversible USB-A cable plugs in either way on both ends, so you never fumble with connector orientation. This USB 2.0 run carries Hi-Speed data at 480 Mbps plus charging power for hubs, docks, kiosks and point-of-sale devices.

Description

Overview

A reversible USB-A cable plugs in either way on both ends, so you never fumble with connector orientation. This USB 2.0 run carries Hi-Speed data at 480 Mbps plus charging power for hubs, docks, kiosks and point-of-sale devices.

A conventional USB-A plug is single-sided: the tongue carries contacts on one face only, so the connector mates in exactly one orientation. A reversible USB-A cable puts contacts on both faces of the tongue, letting either side seat against the host port. Plugging it in upside down still makes a correct connection, which removes the most common daily frustration with USB-A and cuts the wear that repeated mis-insertions put on the socket. Both ends of this assembly use reversible A plugs, so there is no correct side at either connection point.

Reversibility was skipped on the original USB-A for good reasons at the time: engineers assumed the connector would live in fixed spots like keyboards, mice, printers and speakers, so it was plugged in once and left alone, and it had to stay cheap enough to reach mass adoption. Those assumptions are gone today. People now plug and unplug USB-A constantly, and adding contacts to both faces of the tongue costs a fraction of what it did when USB 1.x launched. A reversible USB-A cable keeps every existing socket working while removing the one friction point the original design never anticipated.

Key Specifications

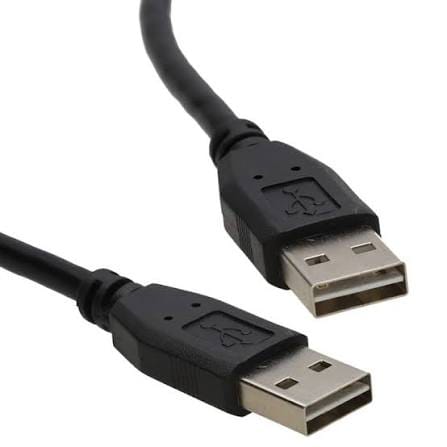

The table below lists the configuration shown in the product photo.

Construction and Materials

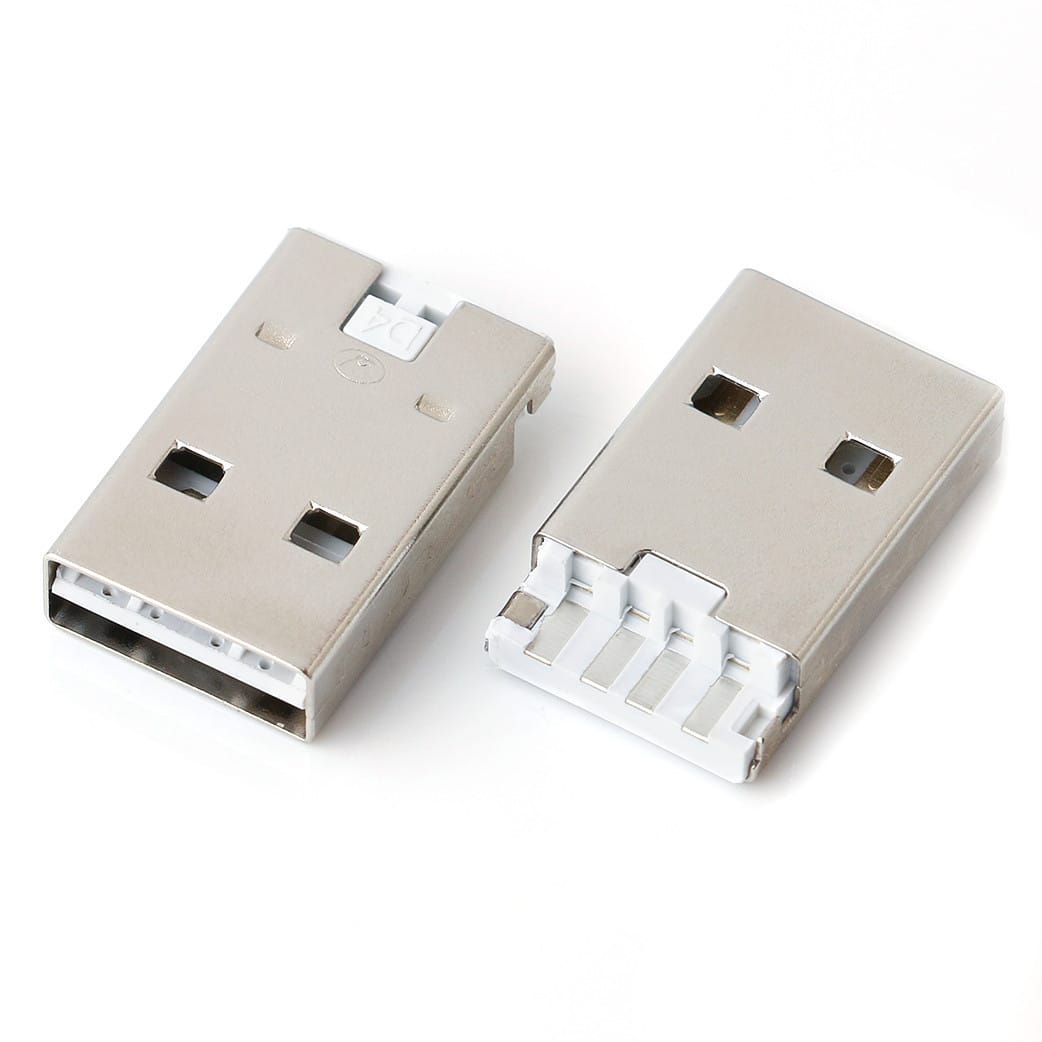

Both connectors use double-sided contacts on the USB-A tongue; once one face seats, the opposite face floats out of circuit, so the link always runs on a single clean contact set. The data pair is twisted and impedance-matched for USB 2.0 Hi-Speed signaling, and the assembly is built to order with the jacket, gauge and length suited to the application. Reversible A plugs stay physically compatible with any standard USB-A socket, so no host or device modification is needed.

Typical Applications

Use it where operators plug and unplug USB-A frequently: charging and sync stations, retail kiosks and point-of-sale terminals, warehouse scanners and handheld devices, test and programming benches, and equipment racks where ports sit in dim or hard-to-reach positions. The reversible plugs are especially useful for public-facing or hurried environments where inserting a cable quickly and correctly matters.

Compatibility and Fitment

Reversible USB-A plugs are a drop-in for standard USB-A sockets. Electrically the cable is USB 2.0, so it supports Hi-Speed 480 Mbps data transfer and standard USB power negotiation. It is not a USB 3.x cable and does not carry SuperSpeed signals. Match the host and device to USB 2.0 operation, and confirm the required length, current rating and jacket at ordering.

Custom Builds and Ordering

Lengths, jacket materials, connector finishes and current ratings are produced to order. Provide the application and length, and we will quote the exact build.

Packaging and Shipping

Each cable ships coiled and bagged with caps over the plugs; OEM labels and bulk reel packing are available.

Quality and Compliance

Every assembly is continuity-tested and the data pair is verified before shipment. See the USB interface standard for the governing interface specification.

Every production run can ship with RoHS and REACH declarations and the electrical report agreed at quotation; see certifications and material declarations. UL styles and other named approvals are built to drawing: we source to the style you specify and document it, rather than asserting a listing we do not hold. Termination, molding and verification happen in-house see the assembly lines behind this build so the process that made your sample is the process that runs the order. More background: what instrument builds require. Tooling is quoted separately, cut in-house rather than brokered out, and owned by you.

What to Put on the Drawing for a Reversible USB A Cable

A reversible usb a cable is released against a drawing, not a catalog description. Put the connector family and keying on each end, the pinout or polarity map, the finished length measured between the mating reference planes, the cable construction you want, and the acceptance tests you expect. If the reversible USB Type-A plug has to clear a panel cutout or a bracket, give that envelope too. Anything left open is agreed in writing before tooling or a production slot is committed.

Where a value is not fixed by your drawing we do not invent one. Contact rating, jacket material, sealing class and test limits are recorded as confirm per build, and the released drawing is what the first article is checked against. Send a marked-up sample if a drawing is not available; we confirm the pinout back to you in writing before any Reversible USB A Cable is built.

How to Request a Quote for a Reversible USB A Cable

Send a drawing or BOM, a physical sample, or a written requirement. We log the interface, the application conditions, the environment and the target quantity together, then return an acknowledgement with a list of anything still missing. Pricing is confirm per RFQ and is quoted against the released specification, not against a generic reversible usb a cable description.

If the design is not final, say so: we quote the prototype route and hold the production tooling decision until the first article is approved. Drawings are handled under a mutual NDA before they are received. The same document then carries the build from sample through repeat orders, which keeps the reversible USB Type-A plug consistent across batches.

Termination Choices and the Contact Interface

The contact interface is part of the specification, not an afterthought. Confirm the mating part number, the keying that prevents a reversed connection, and whether the end is crimped, soldered or IDC before release. A reversible USB Type-A plug that mates correctly but terminates on the wrong insulation diameter will pass a continuity check on the bench and fail later under vibration.

We build to the contact and cable combination on your drawing and verify the pinout on every piece. If you need a specific contact finish, a particular housing color for identification, or a marked pin one, put it on the drawing so it appears in the released build rather than in an email after the fact.

Electrical Verification Before Shipment

Every reversible usb a cable is checked for continuity and pinout against the released drawing before packing, and the mating faces are inspected for full engagement. A swapped core is cheaper to find at the bench than in the field. Where the drawing calls for insulation resistance, dielectric withstand or retention testing, those limits come from your specification and are reported against it; we do not substitute our own numbers.

First article inspection is issued to your format when the order calls for it, with dimensional results and photographs of the critical features. Sealed sections are screened on the agreed test setup. Test scope is fixed in writing before production release so the report that arrives with the shipment describes the build you actually approved.

Packaging, Labeling and Revision Control

Assemblies are individually bagged with contact protection, and OEM labeling, part numbers and bulk packs are available. Put the label text, the bag mark and any barcode requirement on the order so the packing matches your receiving process. For bench fixtures and field service connections, a labeled bag also stops a nearly identical lead from being fitted to the wrong unit during a service visit.

Every revision carries a reference tied to your part number. Obsolete revisions are retained so a repeat order matches the build you approved, and a change to length, pinout, jacket or connector is only made after written confirmation. That record matters more on a reversible usb a cable than a part number alone, because two builds can look the same and wire differently.

Related Cable Ranges

Browse the related ranges: Signal and Data Cables Custom Wire Harnesses DC Plug Power Cables.

Additional information
Connector AUSB Type-A male (reversible)
Connector BUSB Type-A male (reversible)
USB VersionUSB 2.0 (Hi-Speed)
Data Rate480 Mbps
OrientationReversible (plugs either way)
