An installation kit clamps lugs set is what you fit when the original battery cabling is gone, undersized, or was never right in the first place. This is the kit for hot rod, classic and custom vehicle builds: pre-cut red and black leads, insulated positive and negative terminal clamps, ring lugs and heat shrink boots, sized so the whole run gets done in one job instead of three trips to the parts shop. The engineering question is not which kit, it is what cross section and what clamp form, and both answers come from the current and the run length rather than from the battery post.

Key Specifications

Cable Type	Battery Cable Installation Kit
Contents	Power leads, terminal clamps, ring lugs, heat shrink
Application	Hot Rod / Classic / Custom Vehicle
Lead colors	Red and black, positive and negative
Terminations	Ring lugs crimped and sealed with heat shrink
Cross section	Stated per your drawing
Length	Stated per your drawing
Testing	100% continuity check before packing

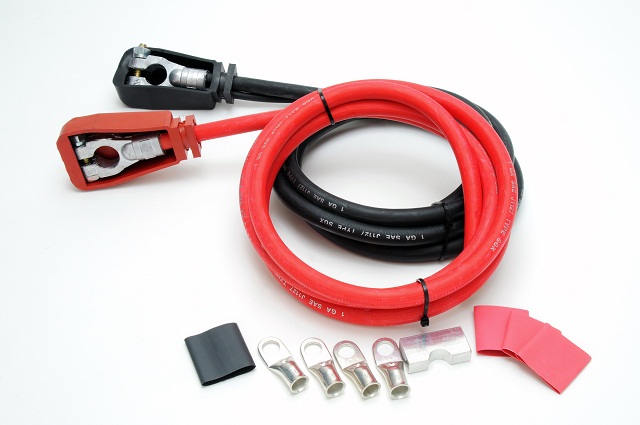

What goes in the kit, and what each part is for

Part	What it does	What to check before you buy
Positive lead, red jacket	Carries the feed from the battery to the starter solenoid or the distribution point	Cross section and length, decided by current and run
Negative lead, black jacket	Returns current to the battery or to the chassis earth point	Same cross section as the positive run
Insulated terminal clamps	Grip the battery posts and carry the full current into the lead	Post form and diameter: top post, side post, JIS pencil or L-terminal
Ring lugs	Bolted terminations at the solenoid, the chassis and the distribution point	Stud diameter and the crimp barrel for your cross section
Heat shrink boots	Seal the crimp barrel and the conductor entry against moisture	Adhesive-lined in a wet or under-hood location

Size the lead before you size the clamp

Voltage drop is the thing that gets ignored and then blamed on the starter, or on the car battery that tests perfectly well. The arithmetic is simple and worth doing once: drop equals current times the resistance of the round trip, and the round trip is twice the one-way length. The figures below are the industry-standard maximum conductor resistances for flexible copper at 20 C, and the drop column is worked for a 4 m one-way run at 200 A, which is roughly a trunk-mounted battery feeding a starter.

Cross section	Resistance per meter at 20 C	Round trip over 4 m	Drop at 200 A
16 mm2	1.21 mOhm	9.7 mOhm	1.94 V
25 mm2	0.78 mOhm	6.2 mOhm	1.25 V
35 mm2	0.55 mOhm	4.4 mOhm	0.89 V
50 mm2	0.39 mOhm	3.1 mOhm	0.62 V

Service literature often quotes a half volt as the acceptable drop across a cranking circuit, and on that basis a 4 m run at 200 A needs 50 mm2 rather than the 25 mm2 most people reach for. That is the whole point of doing the arithmetic: the clamp that fits is not the constraint, the cross section is. The sizes your kit is built to are the ones on your order.

Clamp forms, and how to read your battery posts

Post form	Where you see it	What goes wrong	What to specify
Tapered top post	Most North American and many European cars	A clamp that has been spread and re-tightened stops gripping	Lead clamp sized to the post, not a universal fit
Side post, threaded	A large share of GM vehicles	Stripped threads in the battery case	Correct thread and a bolt length that does not bottom out
JIS pencil post	Japanese domestic market and imports	A standard clamp simply will not fit	JIS clamp form
L-terminal, DIN	European vehicles	Partial contact area and a hot joint	The L form and the correct taper
Marine wing nut	Boats and dual-purpose batteries	Loosening under vibration	Stainless hardware and a lock washer

Crimp, then seal: why not solder

Soldering a battery lug looks tidier and works worse. Solder wicks up the strand bundle and creates a stiff section right where the cable needs to flex, and that is exactly where these leads break. A proper hex or indent crimp cold-welds the conductor into the barrel, and an adhesive-lined heat shrink boot over the top keeps moisture out of the interface. Add a little dielectric grease on the post, and check the joint is not the warmest thing under the hood after a long crank.

Symptom to cause, for the leads that come back

What you see	Most likely cause	What fixes it
Slow crank, battery tests fine	Undersized conductor for the run length	Re-size using the drop calculation, not the clamp size
Clicking, then nothing	High resistance at the post or at the crimp	Clean to bright metal, re-crimp, re-torque
Lead hot after a crank	Undersized conductor or a poor crimp	Same two checks: cross section and termination quality
Green or white powder at the terminal	Acid fumes and moisture reaching the joint	Tinned conductor, sealed boot, dielectric grease
Intermittent electrical faults	Loose clamp or a broken strand inside the insulation	Check the grip on the post and flex-test the lead
