Heavy-Duty 9-Pin Industrial Diagnostic Cable Assembly

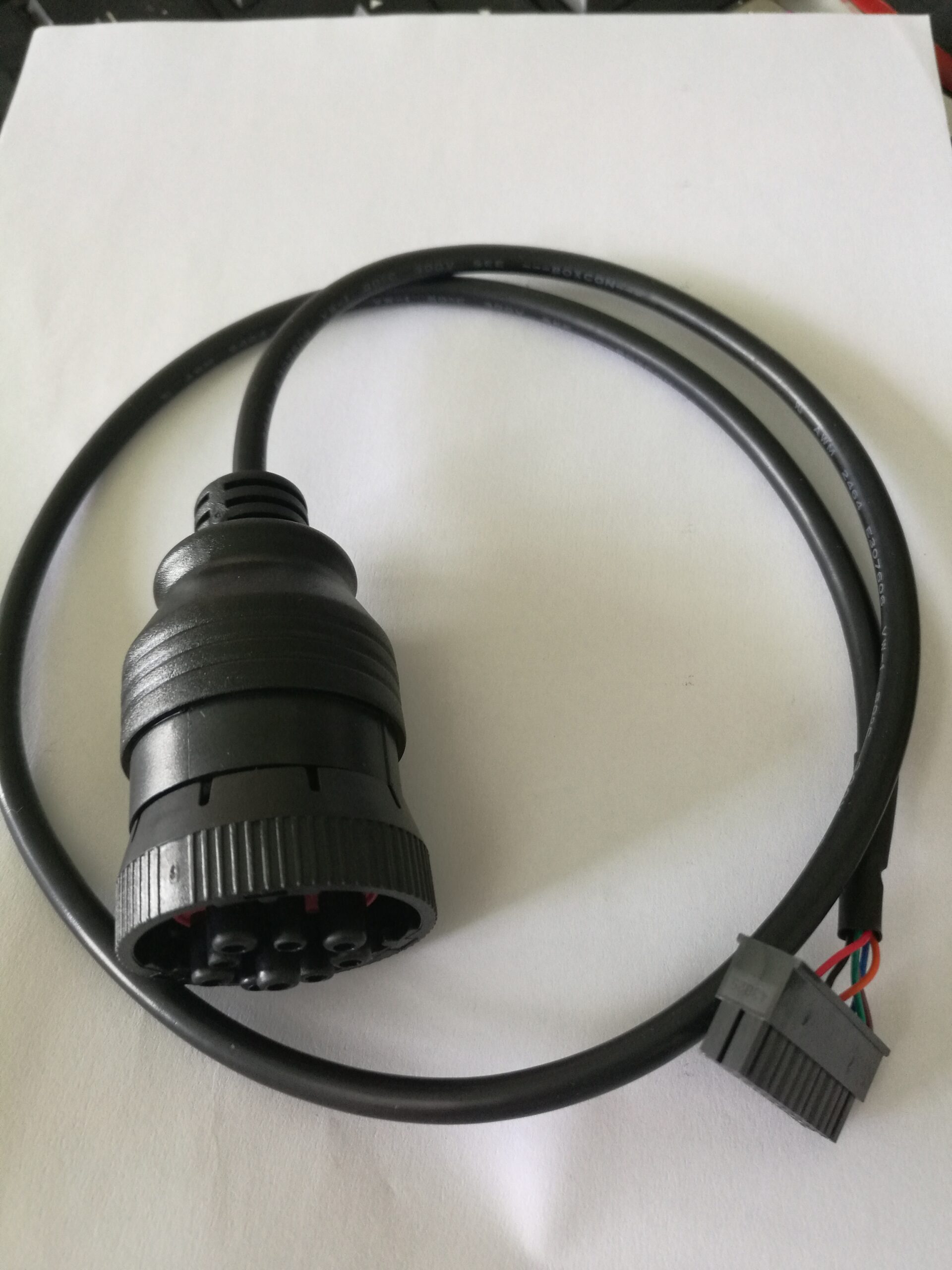

Heavy-duty 9-pin industrial round connector (red insert) on one end, 14-pin 2×7 DIP male bare-end on the other. Diagnostic lead for engine management systems on trucks, marine diesel and heavy equipment test benches.
Heavy-duty 9-pin industrial round connector (red insert) on one end, 14-pin 2×7 DIP male bare-end on the other. Diagnostic lead for engine management systems on trucks, marine diesel and heavy equipment test benches.
Overview
Heavy-duty 9-pin industrial round connector (red insert) on one end, 14-pin 2×7 DIP male bare-end on the other. Diagnostic lead for engine management systems on trucks, marine diesel and heavy equipment test benches.
Every assembly is built to the pinout, length and jacket specification agreed on the order, so the lead that arrives is the one the job actually needs rather than a generic part that mostly fits.
Key Specifications
- Cable Type: Heavy-Duty Industrial Cable

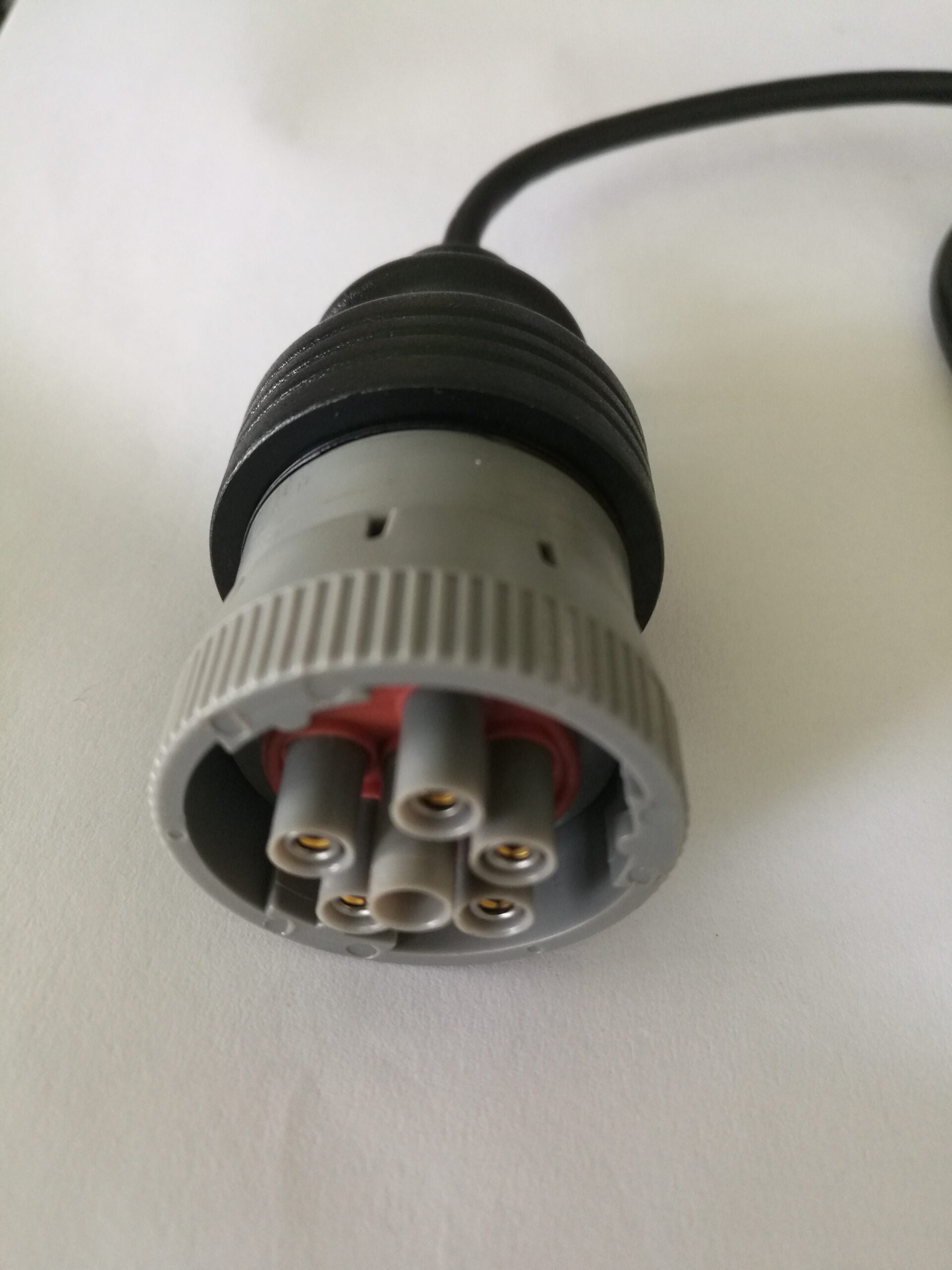

- Connector A: 9-Pin Round Female (Red Insert)
- Connector B: 14-Pin 2×7 DIP Bare End
- Application: Heavy Equipment / Marine Diesel Diagnostics
Construction and Materials
The round 9-pin plug takes the industrial connector format used across heavy vehicle and marine engine harnesses, with a threaded coupling ring rather than a bayonet. The far end is a bare 14-pin 2×7 DIP male header for bench access, so the same lead works both in the field and on a test stand.
Typical Applications
Used to connect a truck or marine diesel ECU harness to workshop diagnostic equipment, and on generator and pump set controllers that expose service data on a 9-pin port. The bare DIP end also suits bench work where the controller is powered from a supply rather than installed in the machine.
Compatibility and Fitment
Heavy vehicle 9-pin ports are not standardised across manufacturers; the pinout follows the engine or gearbox maker rather than a single specification. Verify the pinout against the service manual before connecting test equipment.
Custom Builds and Ordering
Cable length, conductor cross section, jacket material and connector plating can all be specified per order. Send the pinout or a sample and the assembly will be built to match, with OEM and bulk packaging available for production runs.
Related Cable Ranges
| Cable Type | Heavy-Duty Industrial Cable |
|---|---|
| Connector A | 9-Pin Round Female (Red Insert) |
| Connector B | 14-Pin 2×7 DIP Bare End |
| Application | Heavy Equipment / Marine Diesel Diagnostics |
